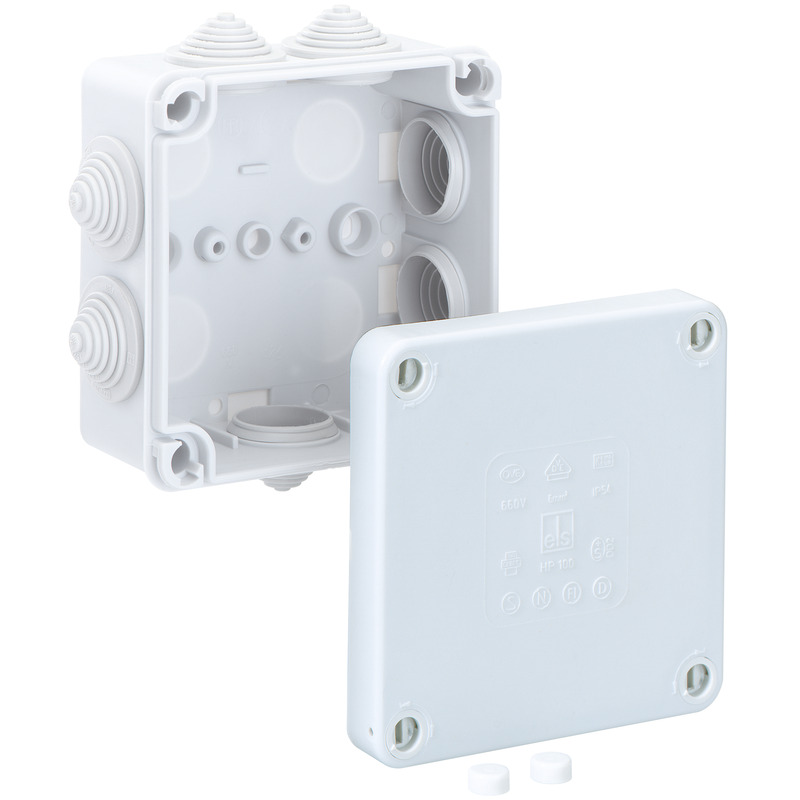

Junction box, protection class IP55, nominal cross-section 6 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), stepped nipple, M20/M25, sealing range 5 - 21 mm, (4 rear, 7 side), internal fixing points, for standard indoor installations
grey, without terminals
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 6 mm² |
| Protection class | II |
| Type of protection | IP55 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 113 mm |
|---|---|
| Length | 113 mm |
| Height | 58 mm |
| Inner length | 103.5 mm |
| Inner width | 103.5 mm |
| Inner height | 52 mm |
| Weight | 0.135 kg |
| UV-resistant | no |
|---|---|
| Halogen free | no |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| for sealing range min | 5 mm |
|---|---|
| for sealing range max | 21 mm |
| Type of fastening | Wall/ceiling mounting |
| Impact strength | IK07 |
| Sealable | no |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902020195 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 20 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902339525 |
|---|---|
| Width | 0.437 m |
| Weight | 3.085 kg |
| Height | 0.212 m |
| Quantity | 20 pieces |
| Depth | 0.317 m |
| EAN / GTIN | 4013902339532 |
|---|---|
| Width | 0.8 m |
| Weight | 166.08 kg |
| Height | 1.85 m |
| Quantity | 960 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902020195 |
|---|---|
| Width | 0.113 m |
| Weight | 0.135 kg |
| Height | 0.058 m |
| Quantity | 1 pieces |
| Depth | 0.113 m |
Tender text
(32690001.TXT 751 B)
Log in to download tender texts.
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
Stepped nipple

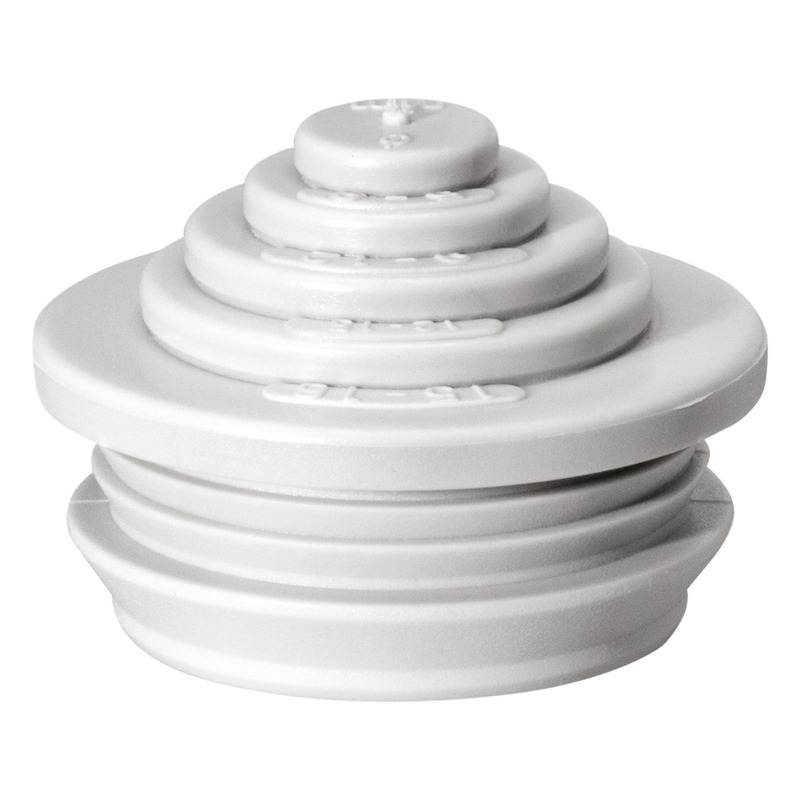

SNI M20
Productnumber 21642001
Sealing range 5 - 16 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Stepped nipple
SNI M25
Productnumber 21642501
Sealing range 5 - 21 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Cable gland
KVR M20-MGM
Productnumber 22742001
Sealing range 6 - 12 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M20-GDB/MGM
Productnumber 22742101
Sealing range 7 - 14 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M25-MGM
Productnumber 22742501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Double-membrane seals
DMS M20/w
Productnumber 26012001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25/w
Productnumber 26012501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M20
Productnumber 26042001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25
Productnumber 26042501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Ventilation seal
BST M20/sw
Productnumber 26202001
Black
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Ventilation seal
BST M20
Productnumber 26242001
Grey
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Terminal block

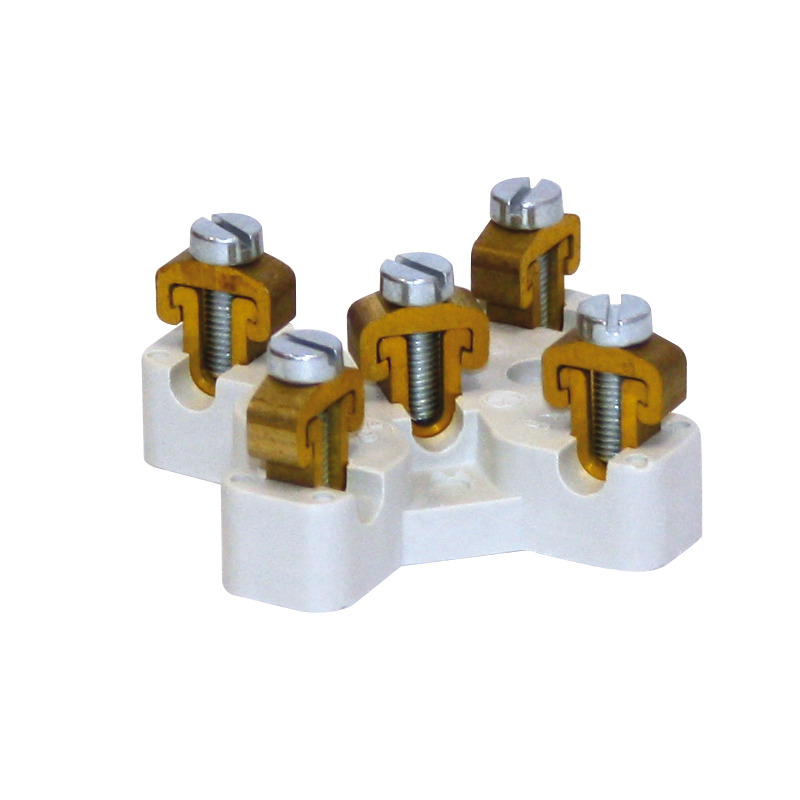

WK 060 KLS-6²
Productnumber 46050601
5x6 mm², for K15, K2-, K3-EK boxes
Connecting terminal, Ui=400V / 690V
Terminal block

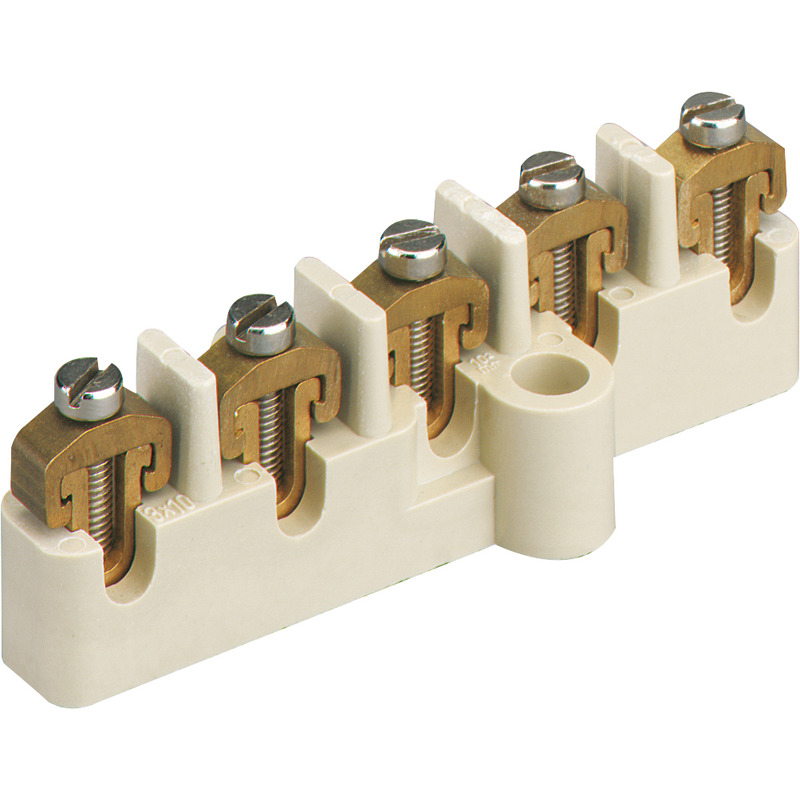

WK 100 KLS-10²
Productnumber 46051001
5x10 mm², for K15, K3-, K4-EK boxes
Connecting terminal, Ui=400V / 690V
Terminal block
Abox 025/040 KLS-2,5²/4²
Productnumber 84000401
5-pole - 2.5/4 mm²
Connecting terminal acc. to DIN EN 60998 (VDE 0613), Ui=690V
Cable tray fastening
KTB 1-100
Productnumber 89602901
Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...
