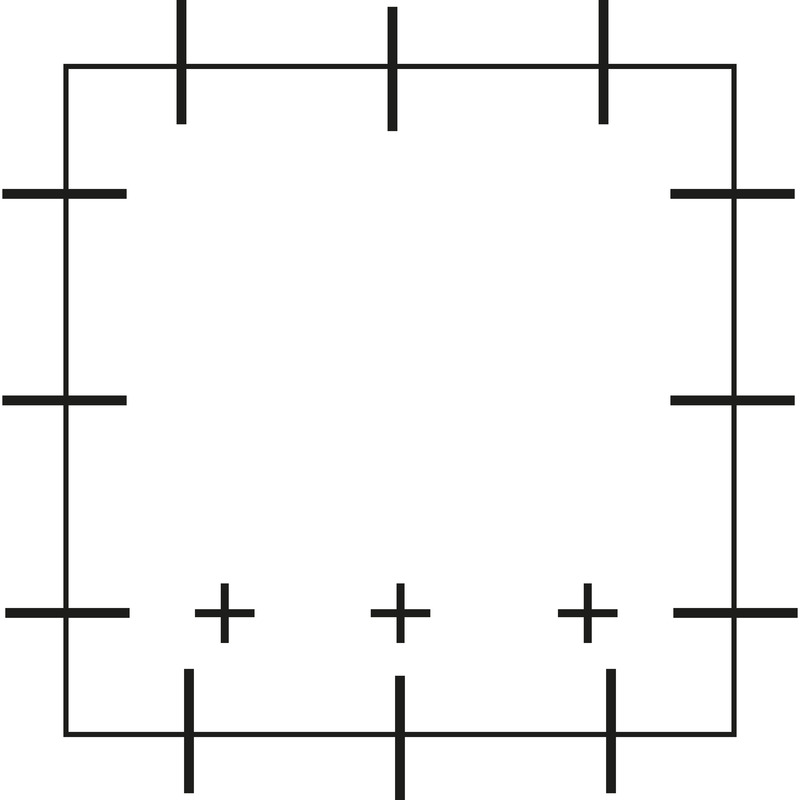

Junction box, protection class IP20, nominal cross-section 2.5 mm², Ui=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), inserts with cable retention capacity, (3 rear, 12 side), external fixing lugs, for standard indoor installations, with cable retention, cable entry from above possible
red, without terminals, for identifying circuits for safety lighting
| Rated insulation voltage AC | 400 V |
|---|---|
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP20 |
| UL Type Rating | not specified |
| Base unit colour | red |
|---|---|
| Cover colour | red |
| Width | 85 mm |
|---|---|
| Length | 85 mm |
| Height | 37 mm |
| Weight | 0.046 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| max. amount of terminals at 1,5² | 6 |
|---|---|
| max. amount of terminals at 2,5² | 5 |
| max. amount of wires at 1,5² | 20 |
|---|---|
| max. amount of wires at 2,5² | 15 |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | no |
| Fastening | external fixing lugs |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902399413 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 10 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902912896 |
|---|---|
| Width | 0.34 m |
| Weight | 0.465 kg |
| Height | 0.105 m |
| Quantity | 10 pieces |
| Depth | 0.07 m |
| EAN / GTIN | 4013902315536 |
|---|---|
| Width | 0.444 m |
| Weight | 3.12 kg |
| Height | 0.19 m |
| Quantity | 60 pieces |
| Depth | 0.329 m |
| EAN / GTIN | 4013902315543 |
|---|---|
| Width | 0.8 m |
| Weight | 205.2 kg |
| Height | 1.93 m |
| Quantity | 3600 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902399413 |
|---|---|
| Width | 0.085 m |
| Weight | 0.046 kg |
| Height | 0.037 m |
| Quantity | 1 pieces |
| Depth | 0.085 m |
