Description
Lock nut for metric twist nipple and cable glands, polyamide
Thread M16x1.5
#20841601 | Dimensions: 25 x 25 x 5 mm
Lock nut
Technical Data
Colours
| Accessory colour | light grey |
|---|
Dimensions
| Width | 25 mm |
|---|---|
| Length | 25 mm |
| Height | 5 mm |
| Nominal size | M16 |
| Weight | 0.0014 kg |
Material characteristics
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 750 °C (EN 60695-2-12) |
Sales Information
| EAN | 4013902012497 |
|---|---|
| ETIM Class | EC000940 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 100 |
Logistic data
Piece
| EAN / GTIN | 4013902012497 |
|---|---|
| Width | 0.025 m |
| Weight | 0.0014 kg |
| Height | 0.005 m |
| Quantity | 1 pieces |
| Depth | 0.025 m |
Inner packaging
| EAN / GTIN | 4013902353415 |
|---|---|
| Width | 0.12 m |
| Weight | 0.144 kg |
| Height | 0.01 m |
| Quantity | 100 pieces |
| Depth | 0.17 m |
Outer packaging
| EAN / GTIN | 4013902333455 |
|---|---|
| Width | 0.357 m |
| Weight | 3.671 kg |
| Height | 0.127 m |
| Quantity | 2400 pieces |
| Depth | 0.257 m |
Pallet
| EAN / GTIN | 4013902333462 |
|---|---|
| Width | 0.8 m |
| Weight | 419 kg |
| Height | 1.67 m |
| Quantity | 259200 pieces |
| Depth | 1.2 m |
Downloads
Download Data Sheet
Dimensioned drawing
Planningdata
Tender text
Tender text
(20841601.TXT 369 B)
Log in to download tender texts.
CAD-Data
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
Similar products
Lock nutGMU PA M12
Lock nut
GMU PA M12
Productnumber 20841201
Thread M12x1.5
Lock nut for metric twist nipple and cable glands, polyamide
Lock nutGMU PA M20
Lock nut
GMU PA M20
Productnumber 20842001
Thread M20x1.5
Lock nut for metric twist nipple and cable glands, polyamide
Lock nutGMU PA M25
Lock nut
GMU PA M25
Productnumber 20842501
Thread M25x1.5
Lock nut for metric twist nipple and cable glands, polyamide
Lock nutGMU PA M32
Lock nut
GMU PA M32
Productnumber 20843201
Thread M32x1.5
Lock nut for metric twist nipple and cable glands, polyamide
Lock nutGMU PA M40
Lock nut
GMU PA M40
Productnumber 20844001
Thread M40x1.5
Lock nut for metric twist nipple and cable glands, polyamide

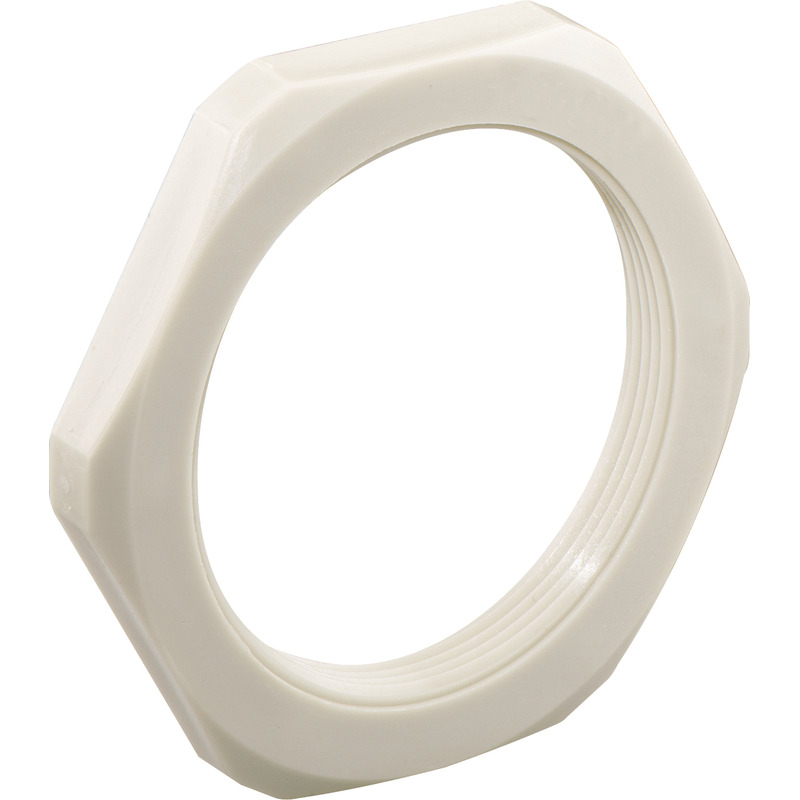

Lock nutGMU PA M50
