Description

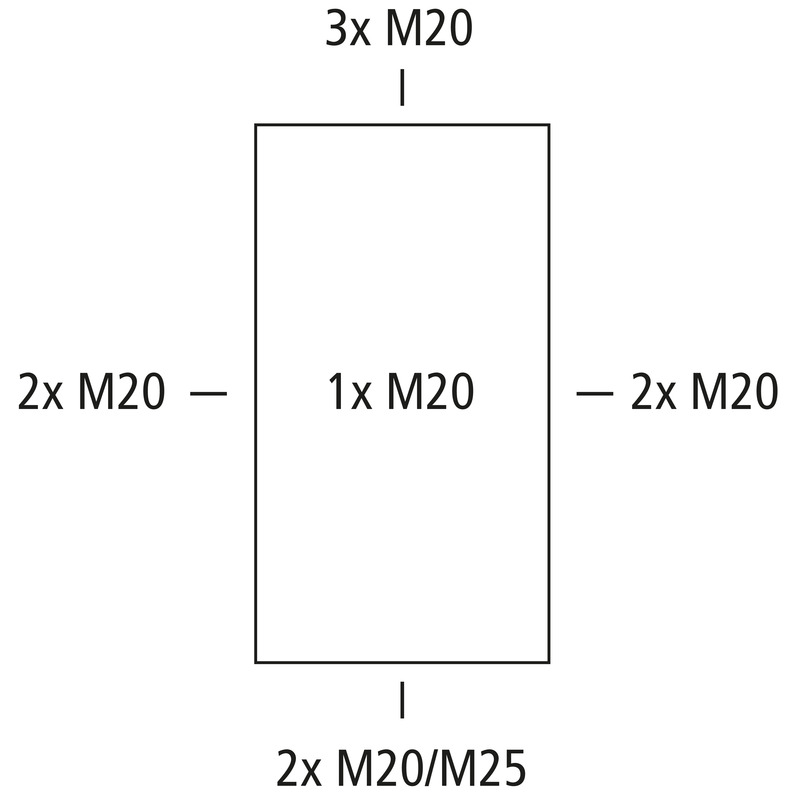

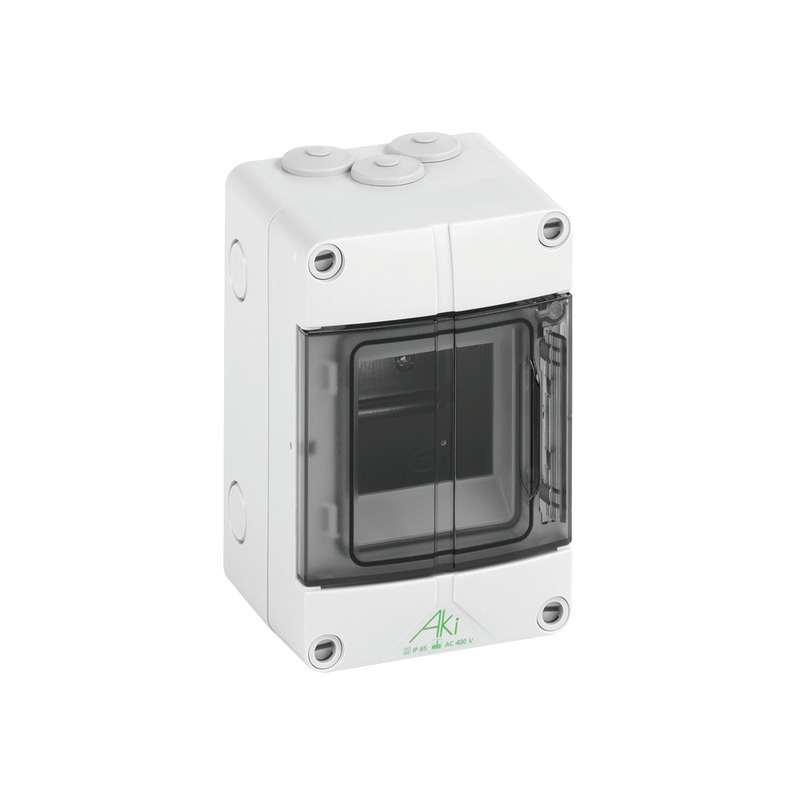

Small distributions boards, protection class IP65, 1 row, 3 available modules, rated operational voltage: 400V AC, rated insulation voltage: 1000V AC, 1000V DC, metric knockouts on top and bottom for universal cable insertions with cable glands and/or double membrane seals, pre-mounted with double membrane seals M20 at the top, for installations in the industrial environment and protected outside areas
with PE/N terminal rail, each with 1 clamping point 16 mm² and 3 clamping points 6 mm²
Accessories supplied:
Double-membrane seals: 1x M25, sealing plugs, masking and labelling strips
Highlights
Reliable - The high protection class (IP65) and the robust, halogen-free design ensure reliable operation even in a tough industrial environment.
