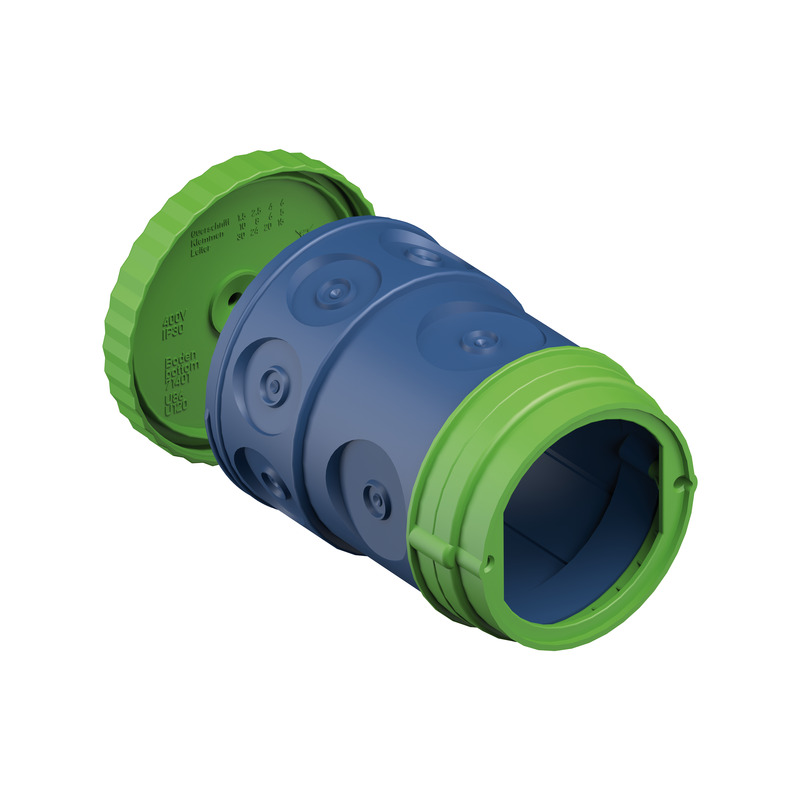

Large conduit box , with open front section for special magnetic clip optimised for prefabricated parts, for ceiling slab thickness up to 7.5 cm, with M5 threaded bushing (load capacity 10 kg) to hold ceiling hook, protection class IP30, rated insulation voltage: 400V AC, Halogen free

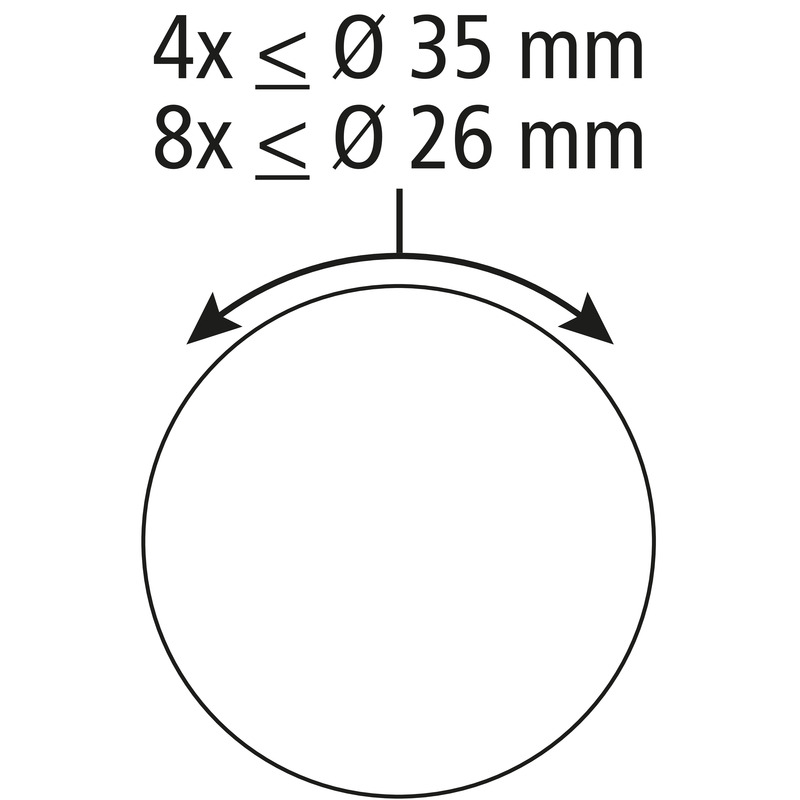

3-part, for Spelsberg HM P 71 (98498001), magnet installation, membrane for perforation, sealing range M16 - M32
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Base unit colour | green |
|---|---|
| Cover colour | other |
| Width | 74 mm |
|---|---|
| Length | 74 mm |
| Height | 133 mm |
| Inner height | 114 mm |
| Weight | 0.0769 kg |
| Halogen free | yes |
|---|---|
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | magnet installation |
|---|---|
| Type of fastening | Concrete construction |
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902656134 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| EAN / GTIN | 4013902656158 |
|---|---|
| Width | 0.493 m |
| Weight | 3.8636 kg |
| Height | 0.356 m |
| Quantity | 44 pieces |
| Depth | 0.293 m |
| EAN / GTIN | 4013902656165 |
|---|---|
| Width | 0.8 m |
| Weight | 68.3632 kg |
| Height | 1.58 m |
| Quantity | 528 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902656134 |
|---|---|
| Width | 0.074 m |
| Weight | 0.0769 kg |
| Height | 0.133 m |
| Quantity | 1 pieces |
| Depth | 0.074 m |
