#49141601 | Dimensions: 180 x 180 x 91 mm
Junction box

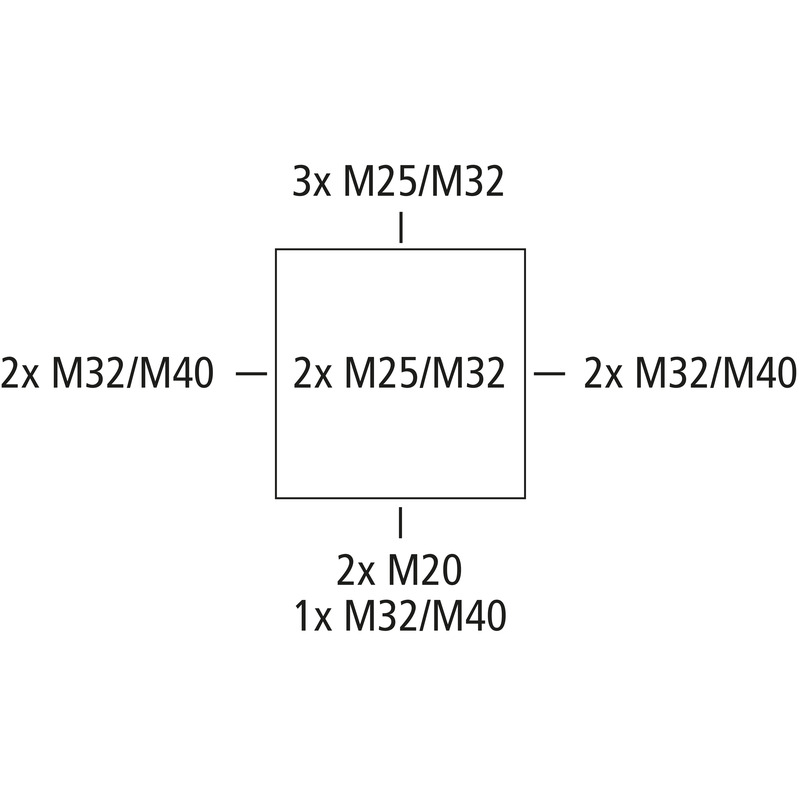

Junction box, protection class IP65, nominal cross-section 16 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M32/M40, (2 rear, 10 side), internal fixing points, for installations in industrial environments and protected outdoor areas
black, with raised screw terminal, 5-pole - 16 mm² (4 x 6² / 4 x 10² / 4 x 16²)
Accessories supplied:
1 Sealing kit
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 16 mm² |
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Base unit colour | black |
|---|---|
| Cover colour | black |
| Width | 180 mm |
|---|---|
| Length | 180 mm |
| Height | 91 mm |
| Weight | 0.7034 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK08 |
| Sealable | yes |
| Cover screw torque | 1.7 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902930999 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate, glass-fibre reinforced |
| Sealing material | Polyurethane |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|
| Test mark | DLG (Ammonia resistance) |
| Test mark | DNV (Class: Ships and Offshore Installations) |
| EAN / GTIN | 4013902930999 |
|---|---|
| Width | 0.18 m |
| Weight | 0.7034 kg |
| Height | 0.091 m |
| Quantity | 1 pieces |
| Depth | 0.18 m |
| EAN / GTIN | 4013902312337 |
|---|---|
| Width | 0.471 m |
| Weight | 7.484 kg |
| Height | 0.197 m |
| Quantity | 10 pieces |
| Depth | 0.371 m |
| EAN / GTIN | 4013902312344 |
|---|---|
| Width | 0.8 m |
| Weight | 302.392 kg |
| Height | 1.73 m |
| Quantity | 380 pieces |
| Depth | 1.2 m |
