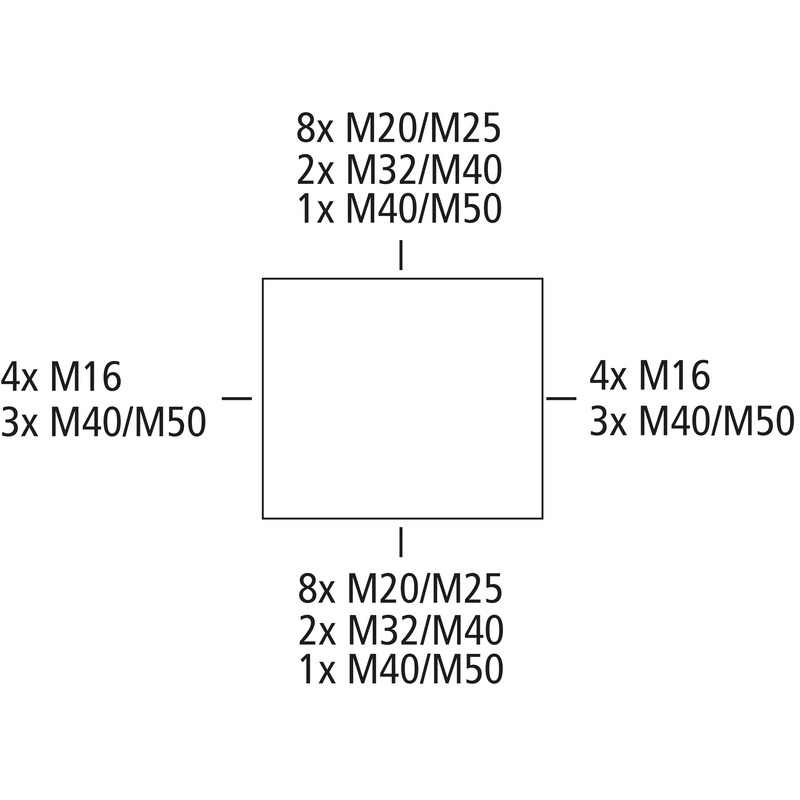

Junction box, protection class IP65, nominal cross-section 150 mm², Ui=690 V AC, knockouts, M16/M20/M25/M32/M40/M50, (24 side), internal fixing points, for installations in industrial environments and protected outdoor areas
grey, with special screw terminal for conductor entry on top, 5-pole - 150² (16 to 150 mm², CU/AL)
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 150 mm² |
| Protection class | II |
| Type of protection | IP65 |
| Number of poles | 5 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 440 mm |
|---|---|
| Length | 320 mm |
| Height | 179 mm |
| Weight | 7.55 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK08 |
| Sealable | yes |
| Cover screw torque | 1.7 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902641963 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate, glass-fibre reinforced |
| Sealing material | Polyurethane |
| Cover screw material | Polyamide, glass-fibre reinforced |
| EAN / GTIN | 4013902641963 |
|---|---|
| Width | 0.455 m |
| Weight | 7.94 kg |
| Height | 0.27 m |
| Quantity | 1 pieces |
| Depth | 0.335 m |
| EAN / GTIN | 4013902641970 |
|---|---|
| Width | 0.8 m |
| Weight | 339.62 kg |
| Height | 1.74 m |
| Quantity | 40 pieces |
| Depth | 1.2 m |
