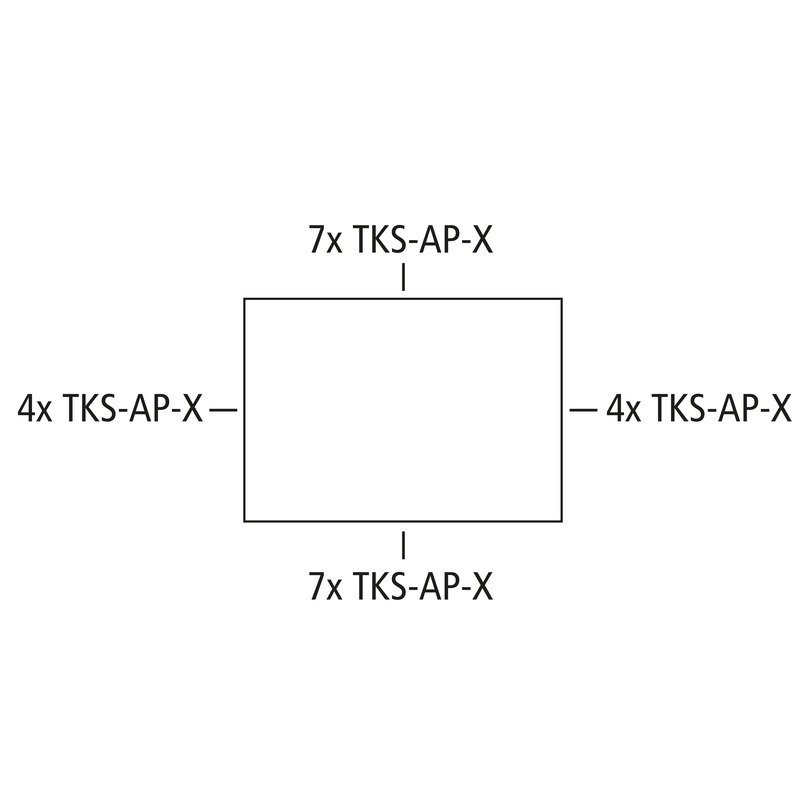

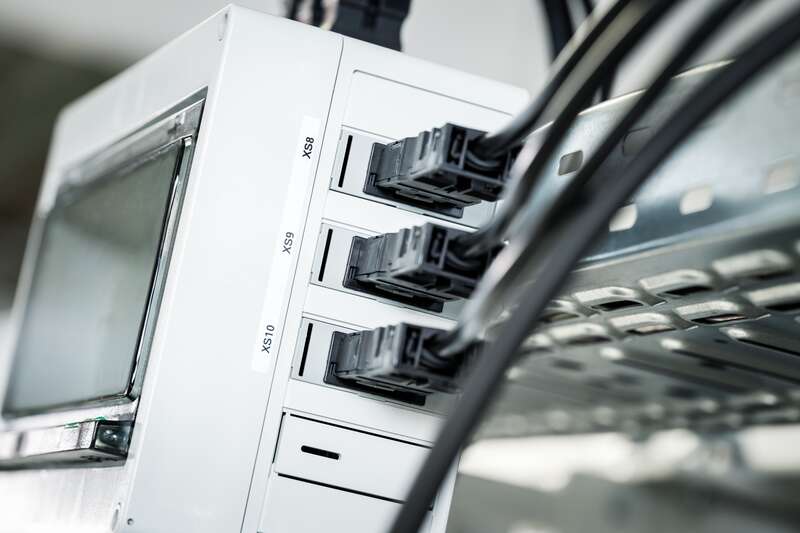

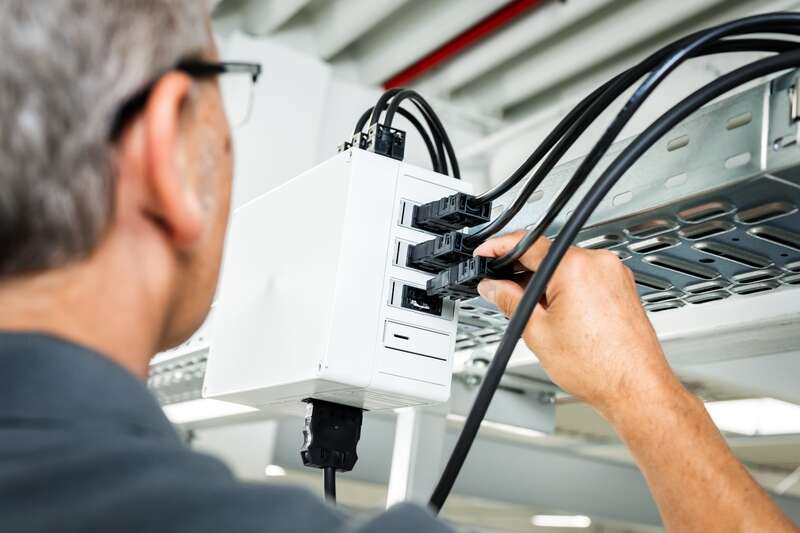

Empty enclosure, protection class IP30, Polycarbonate, internal fixing points, for standard indoor installations, for mounting up to 22 WINSTA® plug connectors in conjunction with TKS AP adapter frames
12 Modular units, Box: Polycarbonate, grey, Lid: Polycarbonate, grey
| Rated operating voltage AC | 690 V |
|---|---|
| Rated operating voltage DC | 1000 V |
| Protection class | II |
| Type of protection | IP30 |
| vented | no |
| Number of modules | 12 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 254 mm |
|---|---|
| Length | 180 mm |
| Height | 111 mm |
| Weight | 0.342 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | yes |
| Cover screw torque | 1.2 Nm |
| Flange variant | no |
| Type of top part | Cover |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | Indoors |
| EAN | 4013902694310 |
|---|---|
| ETIM Class | EC000261 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate |
| Cover screw material | Polyamide, glass-fibre reinforced |
| EAN / GTIN | 4013902694310 |
|---|---|
| Width | 0.254 m |
| Weight | 0.342 kg |
| Height | 0.111 m |
| Quantity | 1 pieces |
| Depth | 0.18 m |
| EAN / GTIN | 4013902694327 |
|---|---|
| Width | 0.372 m |
| Weight | 2.442 kg |
| Height | 0.372 m |
| Quantity | 6 pieces |
| Depth | 0.262 m |
| EAN / GTIN | 4013902694334 |
|---|---|
| Width | 0.8 m |
| Weight | 108.912 kg |
| Height | 1.65 m |
| Quantity | 216 pieces |
| Depth | 1.2 m |
