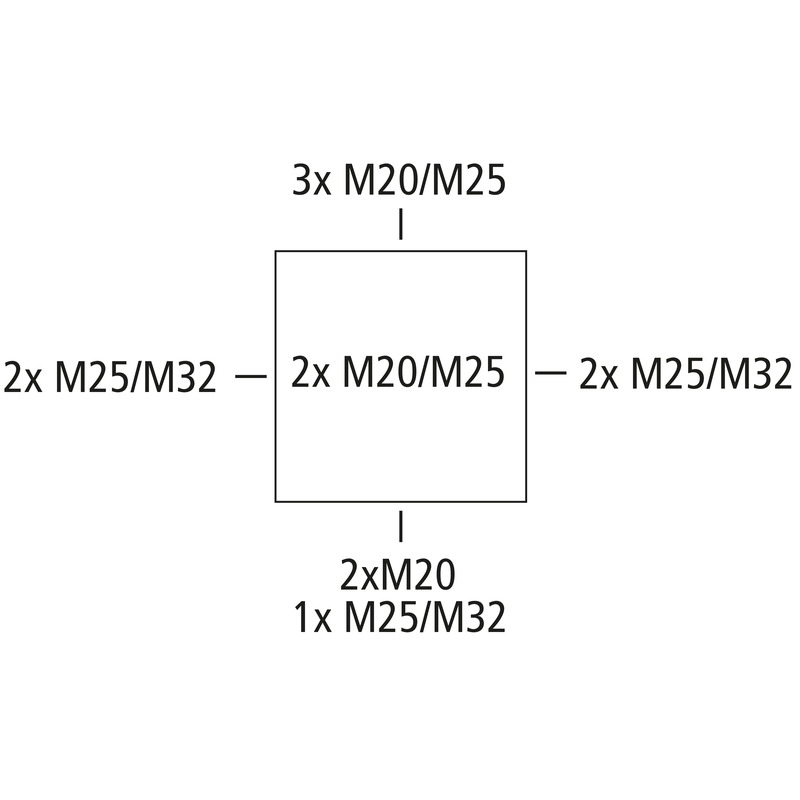

Junction box, protection class IP65, nominal cross-section 10 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (Ammonia resistance), DNV (Class: Ships and Offshore Installations), knockouts, M20/M25/M32, (2 rear, 10 side), internal fixing points, for installations in industrial environments and protected outdoor areas
grey, without terminals
Accessories supplied:
4 Double-membrane seal IP66 M32 sealing range 14 - 21 mm
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 10 mm² |
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 140 mm |
|---|---|
| Length | 140 mm |
| Height | 79 mm |
| Weight | 0.3548 kg |
| UV-resistant | yes |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | V2 |
| Glow-wire flammability | 960 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK08 |
| Sealable | yes |
| Cover screw torque | 1.7 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -35 °C |
| Max. ambient temperature | 80 °C |
| 24h ambient temperature | 60 °C |
| Installation location | protected outdoor areas |
| EAN | 4013902557981 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polycarbonate |
|---|---|
| Cover material | Polycarbonate, glass-fibre reinforced |
| Sealing material | Polyurethane |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|---|
| Test mark | DLG (Ammonia resistance) |
| Test mark | DNV (Class: Ships and Offshore Installations) |
| EAN / GTIN | 4013902557981 |
|---|---|
| Width | 0.14 m |
| Weight | 0.3548 kg |
| Height | 0.079 m |
| Quantity | 1 pieces |
| Depth | 0.14 m |
| EAN / GTIN | 4013902312177 |
|---|---|
| Width | 0.381 m |
| Weight | 7.496 kg |
| Height | 0.332 m |
| Quantity | 20 pieces |
| Depth | 0.291 m |
| EAN / GTIN | 4013902312184 |
|---|---|
| Width | 0.8 m |
| Weight | 280.36 kg |
| Height | 1.87 m |
| Quantity | 700 pieces |
| Depth | 1.2 m |
Tender text
(49091001.TXT 1012 B)
Log in to download tender texts.
Cable gland
KVR M20-MGM
Productnumber 22742001
Sealing range 6 - 12 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M25-MGM
Productnumber 22742501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M32-MGM
Productnumber 22743201
Sealing range 11 - 21 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Double-membrane seals
DMS M20/w
Productnumber 26012001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25/w
Productnumber 26012501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M20
Productnumber 26042001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25
Productnumber 26042501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M32
Productnumber 26043201
Sealing range 13 - 21 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M40
Productnumber 26044001
Sealing range 17 - 28 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Combi set
KS M32
Productnumber 19203201
Thread length 20 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi connector
KST M25-17
Productnumber 19302501
Length 17 mm, for vertical connection of AK/AKi 03 - 12 distribution...
Combination socket for connecting enclosures, polyethylene, grey, for wall thickness 1.5 - 4.0 mm
Combi connector
KST M25-33
Productnumber 19302601
Length 33 mm, for vertical connection of AK 14 - 56, AK/AKi 24...
Combination socket for connecting enclosures, polyethylene, grey, for wall thickness 1.5 - 4.0 mm
Combi connector
KST M32
Productnumber 19303201
Length 25 mm, for vertical and horizontal connection of AK/AKi 24...
Combination socket for connecting enclosures, polyethylene, grey, for wall thickness 1.5 - 4.0 mm
Standard rail
NS 35-106
Productnumber 19810601
for TK 1309, TK 1313 and Abox/Abox-i 100, length 106 mm
Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws
Ventilation seal
BST M20/sw
Productnumber 26202001
Black
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Ventilation seal
BST M20
Productnumber 26242001
Grey
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Terminal block
Abox 100 KLS-10²
Productnumber 84001001
5-pole - 10 mm²
Connecting terminal acc. to DIN EN 60998 (VDE 0613), Ui=690V
Sealing kit
Abox PST
Productnumber 89001001
for junction boxes Abox/Abox-i 025 to 100, (from Abox/Abox-i 160,...
Sealing set
Mounting plate
Abox 100 MPI
Productnumber 89501001
for Abox/Abox-i 100
Assembly plate in melamine-clad insulating material, 2.5 mm thick, grey inc. fixing screws
Junction box
Abox-i 100-10²
Productnumber 49041001
grey, with raised screw terminal, 5-pole - 10 mm² (4 x 4² / 4 x 6² / 4...
Junction box, protection class IP65, nominal cross-section 10 mm², Ui=690 V AC, certified by VDE...
Junction box
Abox-i 100-L/sw
Productnumber 49191001
black, without terminals
Junction box, protection class IP65, nominal cross-section 10 mm², Ui=690 V AC, certified by VDE...
Junction box
Abox-i 100-10²/sw
Productnumber 49141001
black, with raised screw terminal, 5-pole - 10 mm² (4 x 4² / 4 x 6² /...
Junction box, protection class IP65, nominal cross-section 10 mm², Ui=690 V AC, certified by VDE...
