#34491201 | Dimensions: 85 x 85 x 37 mm

Junction box

2K-12-L

Junction box, protection class IP55, nominal cross-section 2.5 mm², U_i=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, sealing range 2 -...

Color variants

Login to see price

Remember product

Description

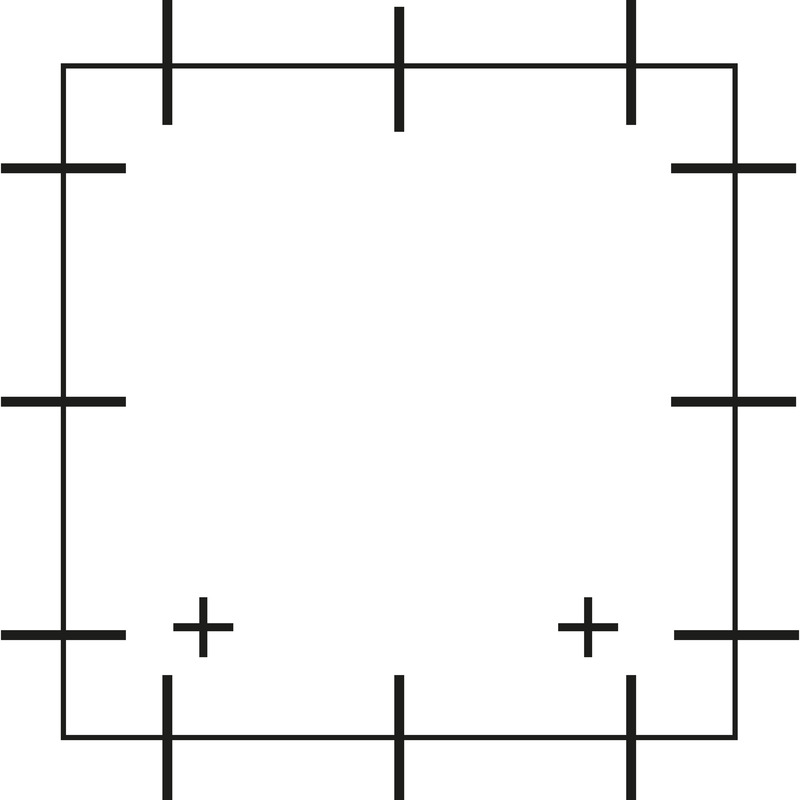

Junction box, protection class IP55, nominal cross-section 2.5 mm², U_i=400 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, sealing range 2 - 14 mm, (2 rear, 12 side), internal fixing points, for standard indoor installations

grey, without terminals

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Max. conductor cross section	2,5 mm²
Protection class	II
Type of protection	IP55
UL Type Rating	not specified

Colours

Base unit colour	grey
Cover colour	grey

Dimensions

Width	85 mm
Length	85 mm
Height	37 mm
Weight	0.045 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

Max. number of terminals per cross section acc. to DIN VDE 0606-1

max. amount of terminals at 1,5²	6
max. amount of terminals at 2,5²	5

Max. number of wires per cross section acc. to DIN VDE 0606-1

max. amount of wires at 1,5²	20
max. amount of wires at 2,5²	15

mechanical properties

for sealing range min	2 mm
for sealing range max	14 mm
Type of fastening	Wall/ceiling mounting
Impact strength	IK07
Sealable	no
Fastening	internal fixing points

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902399451
ETIM Class	EC002600
Custom tariff number	85389099
Minimum order quantity	10

Material

Base unit material	Polypropylene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Thermoplastic elastomer

Certificates

Test mark	VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22))

Logistic data

Inner packaging

EAN / GTIN	4013902021000
Width	0.43 m
Weight	0.45 kg
Height	0.087 m
Quantity	10 pieces
Depth	0.083 m

Outer packaging

EAN / GTIN	4013902315789
Width	0.444 m
Weight	3.06 kg
Height	0.19 m
Quantity	60 pieces
Depth	0.329 m

Pallet

EAN / GTIN	4013902315796
Width	0.8 m
Weight	201.6 kg
Height	1.93 m
Quantity	3600 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902399451
Width	0.085 m
Weight	0.045 kg
Height	0.037 m
Quantity	1 pieces
Depth	0.085 m
