#73442405 | Dimensions: 290 x 407 x 124 mm

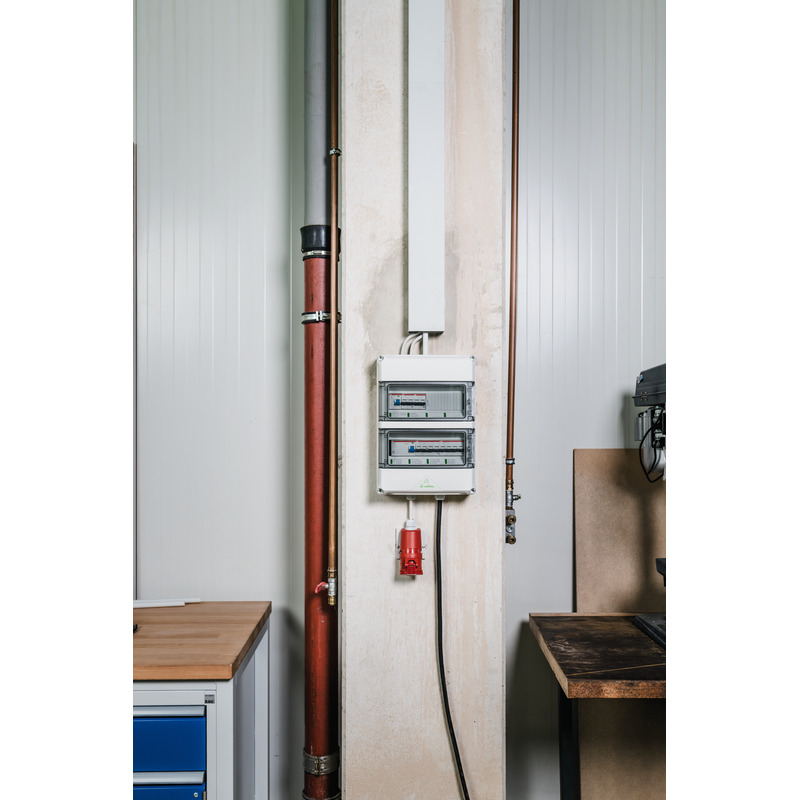

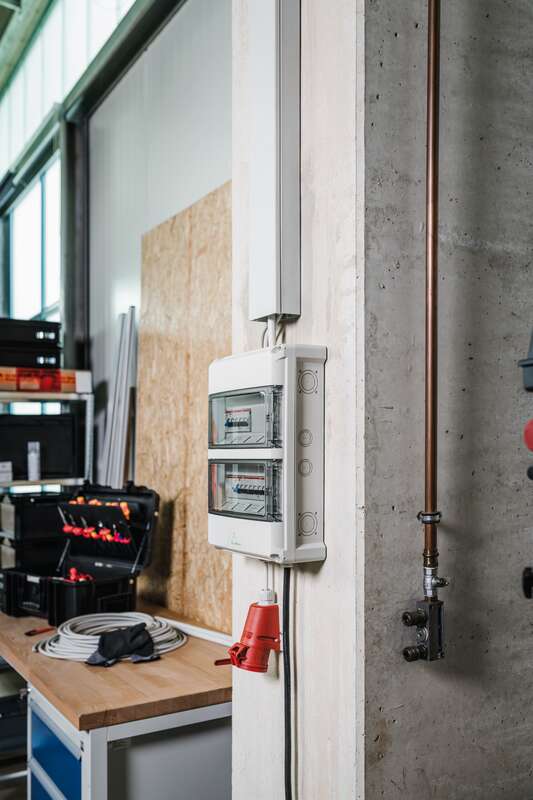

Small distributions boards

AK 24 - PE

Small distributions boards, protection class IP65, 2 rows, 24 available modules, rated operational voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, above self-sealing, soft...

Login to see price

Remember product

Description

Small distributions boards, protection class IP65, 2 rows, 24 available modules, rated operational voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, above self-sealing, soft insertion membranes for tool-free cable insertion, below metric knockouts for universal cable insertions with cable glands and/or double membrane seals, for standard installations indoors

PE terminal block with 3 screw terminals 2.5-16 mm² and 14 push-in terminals 0.75-4mm²

Accessories supplied:
Sealing plugs, cover and labelling strips

Highlights

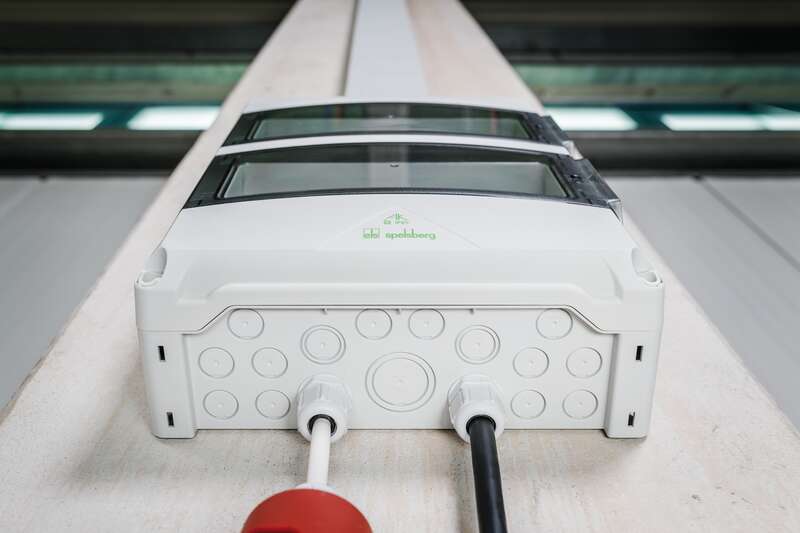

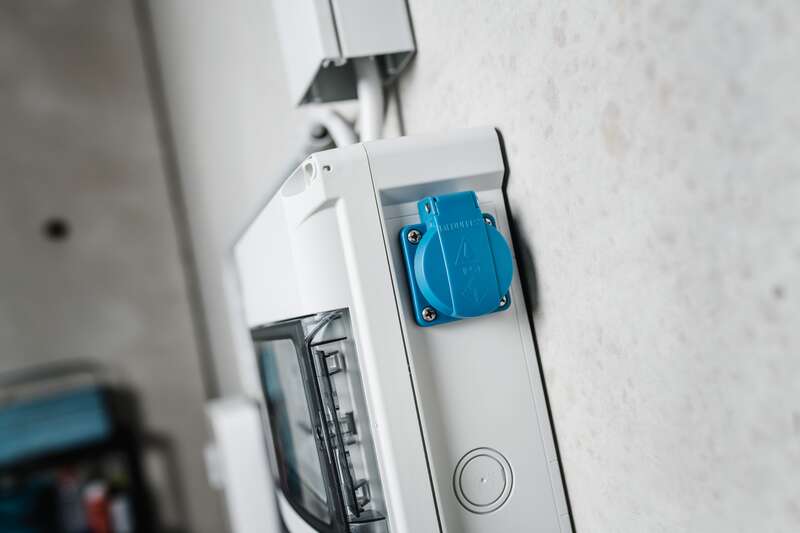

- Self-sealing, soft insertion membranes on one end of the box

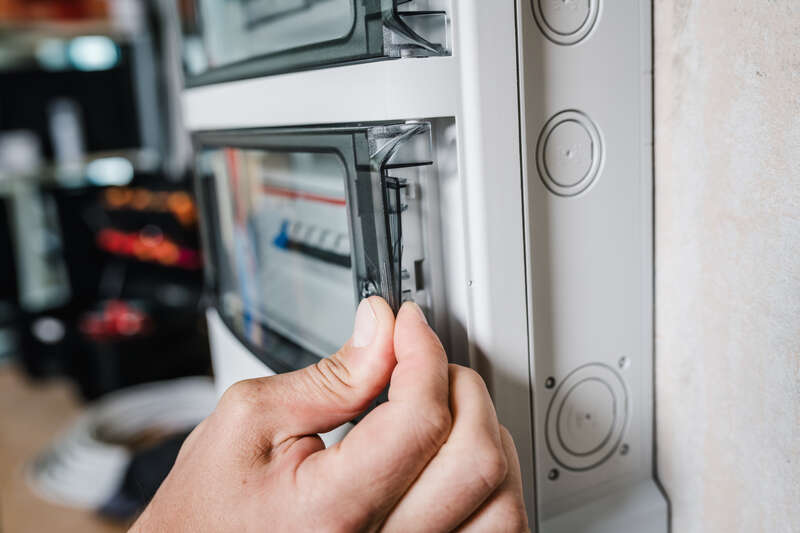

- Metric knockouts for cable glands or double membrane sockets on the other end of the box
- Box can be rotated 180°

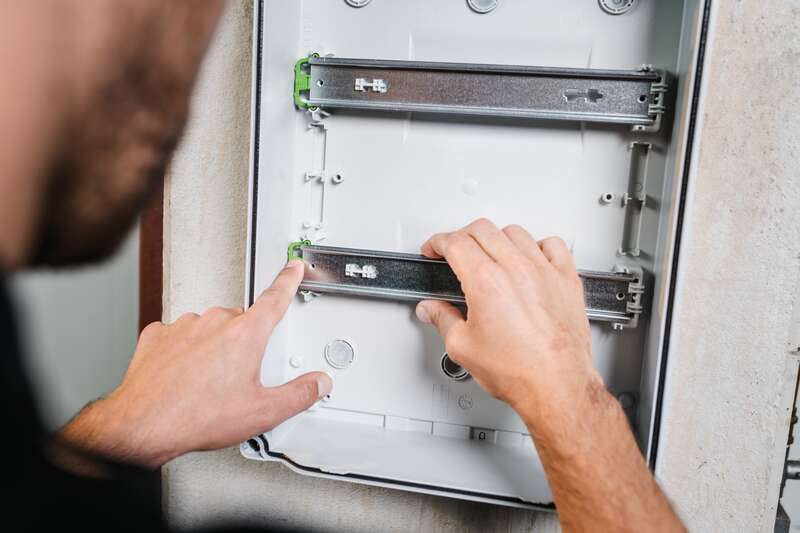

- DIN rails can be mounted without tools

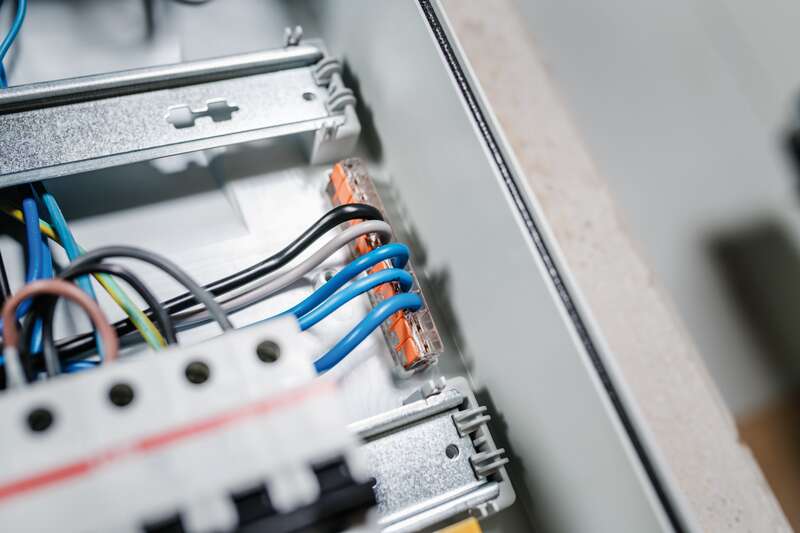

- Fixtures for 3- and 5-pole 6 mm² WAGO terminal 221 in the box base

Technical Data

electrical characteristics

Rated operating voltage AC	400 V
Rated insulation voltage AC	1000 V
Rated insulation voltage DC	1500 V
Protection class	II
Type of protection	IP65
vented	no
Number of rows	2
Number of modules	24
Number of modules per row	12
Rated current	125 A
Terminal type	screwless
with N terminal	no
with PE terminal	yes
with additional installation space	no

Colours

Base unit colour	grey
Cover colour	grey
Hinged window colour	Transparent

Dimensions

Width	290 mm
Length	407 mm
Height	124 mm
Inner length	380 mm
Inner width	268 mm
Inner height	85 mm
Weight	1.96 kg

Material characteristics

UV-resistant	no
Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	Surface mounting
Impact strength	IK08
Sealable	yes
Flange variant	no
Stackable	yes

Ambient conditions

max. relative humidity 25°C	95 %
max. relative humidity 40°C	57 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C
Installation location	Indoors

Sales Information

EAN	4013902704767
ETIM Class	EC000214
Custom tariff number	85369095
Minimum order quantity	1

Material

Base unit material	Polystyrene
Cover material	Polypropylene
Entry material	Thermoplastic elastomer
Sealing material	Polyurethane
Cover screw material	Polyamide, glass-fibre reinforced
Hinged window material	Polycarbonate

Logistic data

Outer packaging

EAN / GTIN	4013902704767
Width	0.407 m
Weight	2.015 kg
Height	0.129 m
Quantity	1 pieces
Depth	0.299 m

Pallet

EAN / GTIN	4013902704897
Width	0.8 m
Weight	167.08 kg
Height	1.872 m
Quantity	72 pieces
Depth	1.2 m
