Description
Small distributions boards, protection class IP65, 3 rows, 36 available modules, rated operational voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, above self-sealing, soft insertion membranes for tool-free cable insertion, below metric knockouts for universal cable insertions with cable glands and/or double membrane seals, for standard installations indoors

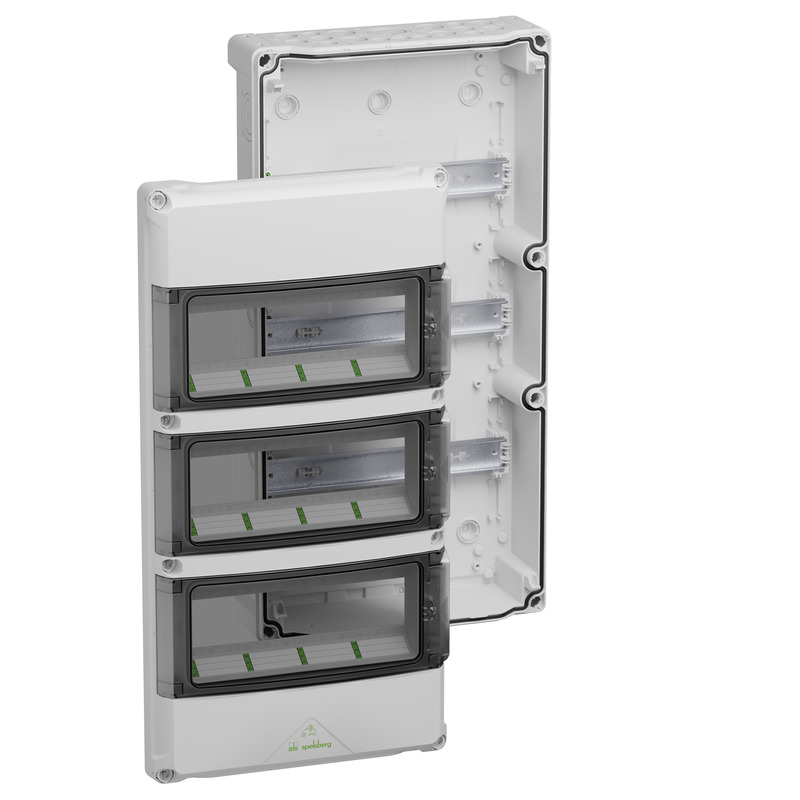

without PE/N terminal
Accessories supplied:
Sealing plugs, cover and labelling strips
Highlights

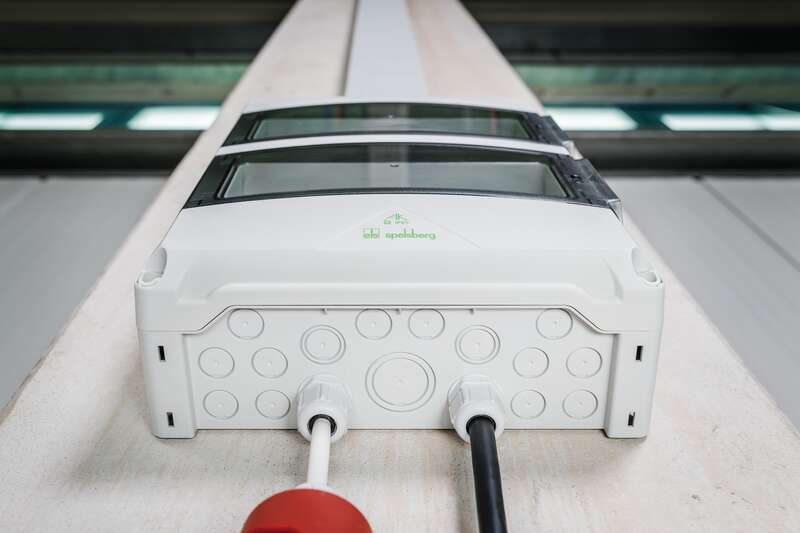

- Self-sealing, soft insertion membranes on one end of the box
- Metric knockouts for cable glands or double membrane sockets on the other end of the box
- Box can be rotated 180°

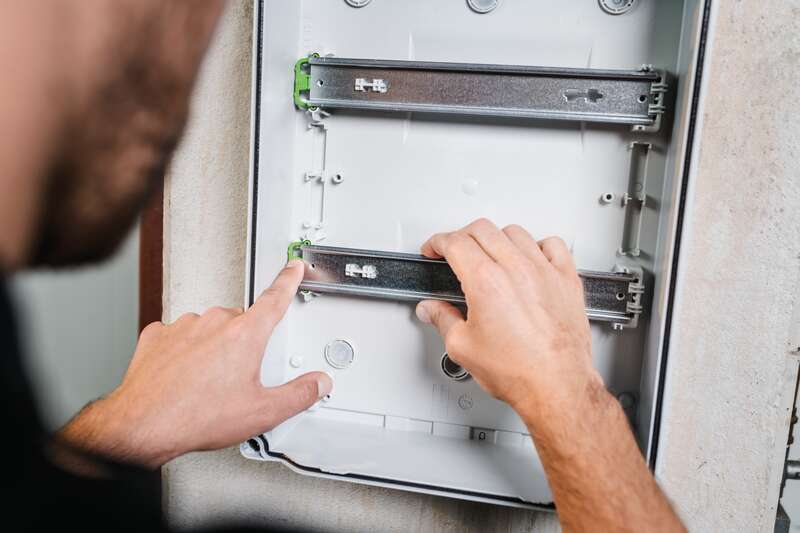

- DIN rails can be mounted without tools

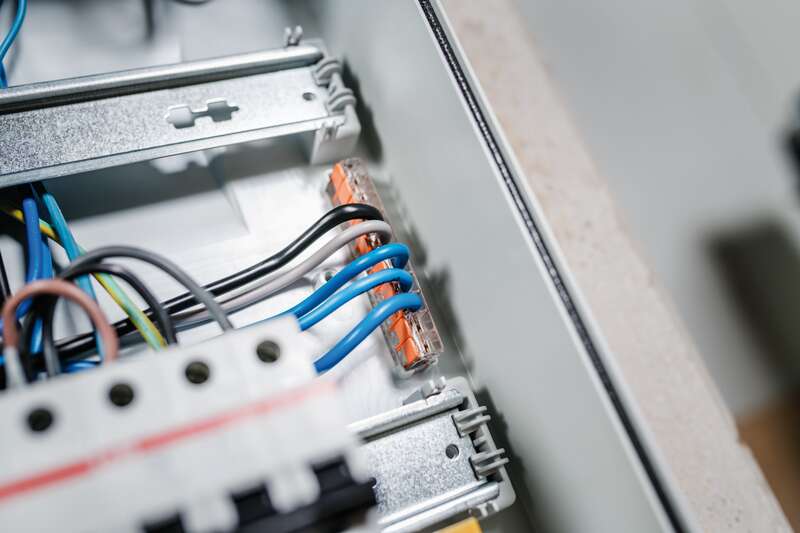

- Fixtures for 3- and 5-pole 6 mm² WAGO terminal 221 in the box base
