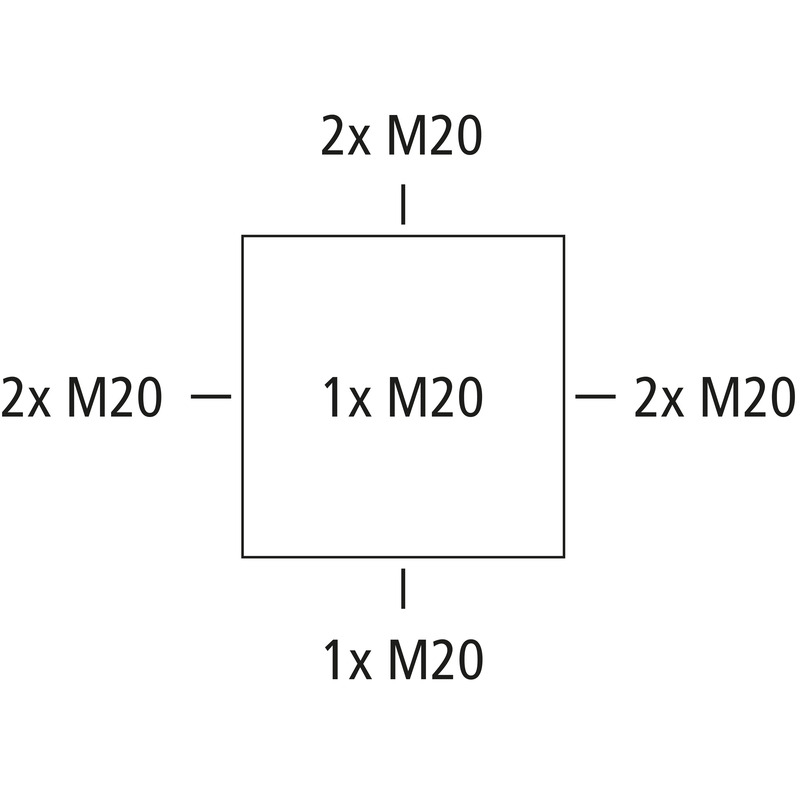

Junction box, protection class IP65, nominal cross-section 2.5 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), self-sealing, soft insertion membranes, M20, sealing range 2 - 16 mm, (1 rear, 7 side), internal fixing points, for standard indoor installations
grey, with red cover, without terminals, for identifying circuits for safety lighting
| Rated operating voltage AC | 690 V |
|---|---|
| Rated insulation voltage AC | 690 V |
| Max. conductor cross section | 2,5 mm² |
| Protection class | II |
| Type of protection | IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | red |
| Width | 80 mm |
|---|---|
| Length | 80 mm |
| Height | 52 mm |
| Weight | 0.0783 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| for sealing range min | 2 mm |
|---|---|
| for sealing range max | 16 mm |
| Type of fastening | Wall/ceiling mounting |
| Impact strength | IK07 |
| Sealable | yes |
| Cover screw torque | 1 Nm |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902111015 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 1 |
| Base unit material | Polystyrene |
|---|---|
| Cover material | Polystyrene |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902111015 |
|---|---|
| Width | 0.08 m |
| Weight | 0.0783 kg |
| Height | 0.052 m |
| Quantity | 1 pieces |
| Depth | 0.08 m |
| EAN / GTIN | 4013902307173 |
|---|---|
| Width | 0.383 m |
| Weight | 5.013 kg |
| Height | 0.281 m |
| Quantity | 60 pieces |
| Depth | 0.258 m |
| EAN / GTIN | 4013902307180 |
|---|---|
| Width | 0.8 m |
| Weight | 288.702 kg |
| Height | 1.82 m |
| Quantity | 3240 pieces |
| Depth | 1.2 m |
Tender text
(80270701.TXT 842 B)
Log in to download tender texts.
Combi set
KS M20
Productnumber 19202001
Thread length 17 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Twist plug
WST M20
Productnumber 20342001
Sealing range 8 - 13,5 mm, Thread length 12 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Twist nipple
WNI M20
Productnumber 21342001
Sealing range 8 - 13,5 mm, Thread length 12 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, grey
Stepped nipple
SNI M20
Productnumber 21642001
Sealing range 5 - 16 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Cable gland
KVR M20-MGM
Productnumber 22742001
Sealing range 6 - 12 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M20-GDB/MGM
Productnumber 22742101
Sealing range 7 - 14 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Attachment bushes
AST M20
Productnumber 23042001
Sealing range 8 - 13,5 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Sealing plugs
VST M20
Productnumber 23142001
Sealing range 8 - 13,5 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Double-membrane seals
DMS M20/w
Productnumber 26012001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M20
Productnumber 26042001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Ventilation seal
BST M20/sw
Productnumber 26202001
Black
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Ventilation seal
BST M20
Productnumber 26242001
Grey
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Conduit connector
RST M20
Productnumber 28842001
for conduits with an external diameter of 20 mm
Pipe socket to take smooth pipes, with locknut, polystyrene, grey
Terminal block
Abox 025/040 KLS-2,5²/4²
Productnumber 84000401
5-pole - 2.5/4 mm²
Connecting terminal acc. to DIN EN 60998 (VDE 0613), Ui=690V
Sealing kit
Abox PST
Productnumber 89001001
for junction boxes Abox/Abox-i 025 to 100, (from Abox/Abox-i 160,...
Sealing set
Junction box
Abox 025-L
Productnumber 80290701
grey, without terminals
Junction box, protection class IP65, nominal cross-section 2.5 mm², Ui=690 V AC, certified by VDE...
Junction box
Abox 025-2,5²
Productnumber 80240701
grey, In=24 A, with screw terminal, 5-pole - 2.5 mm² (4 x 1.5² / 4 x...
Junction box, protection class IP65, nominal cross-section 2.5 mm², Ui=690 V AC, certified by VDE...
Junction box
Abox 025-L/w
Productnumber 80260701
white, without terminals
Junction box, protection class IP65, nominal cross-section 2.5 mm², Ui=690 V AC, certified by VDE...
Junction box
Abox 025-2,5²/w
Productnumber 80210701
white, In=24 A, with screw terminal, 5-pole - 2.5 mm² (4 x 1.5² / 4 x...
Junction box, protection class IP65, nominal cross-section 2.5 mm², Ui=690 V AC, certified by VDE...
