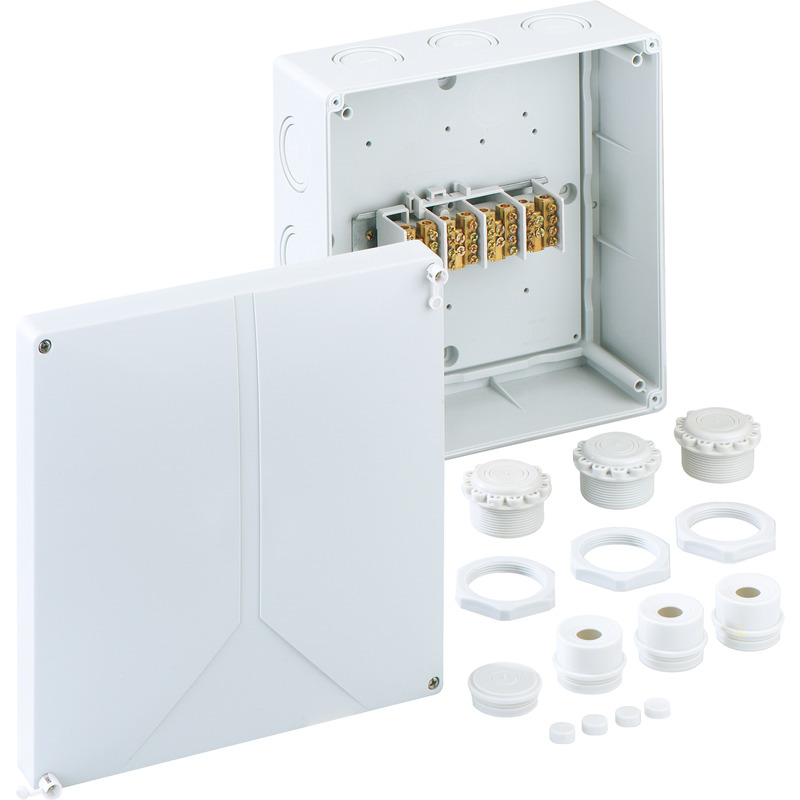

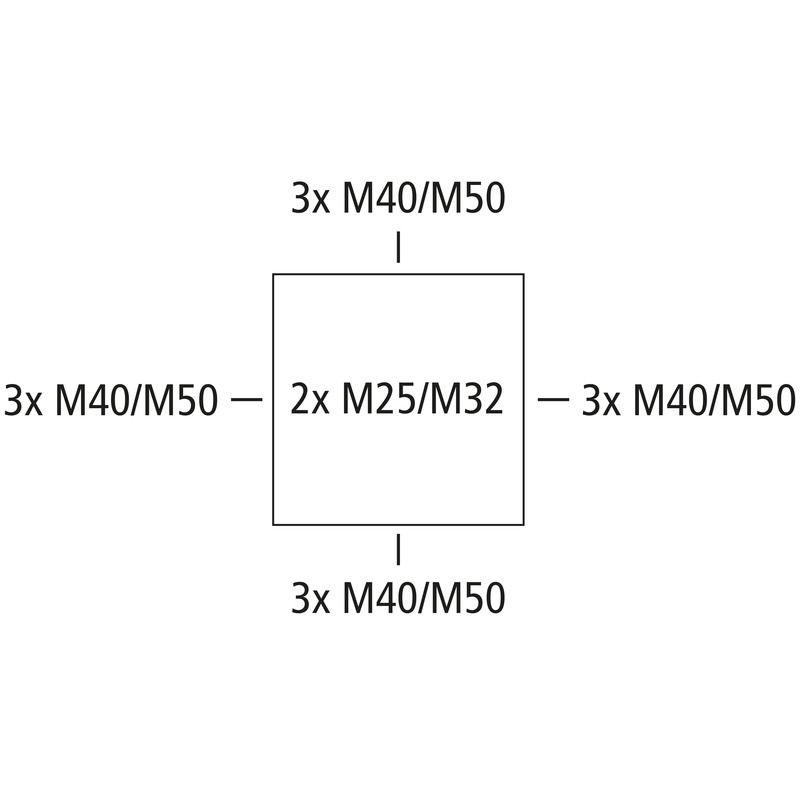

Junction box, protection class IP54/IP65, nominal cross-section 25 mm², Ui=690 V AC, knockouts, M20/M25/M32/M40/M50, (4 rear, 10 side), internal fixing points, with main line junction terminal for standard installations indoors
grey, with screw terminal 4-pole - 25 mm²
Accessories supplied:
3 attachment bushes IP54 M40 sealing range 17 - 30 mm, 1 sealing plug M40, 3 twist plugs with locknuts IP54 M50 sealing range 13 - 35 mm
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 25 mm² |
| Protection class | II |
| Type of protection | IP54/IP65 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 250 mm |
|---|---|
| Length | 250 mm |
| Height | 115 mm |
| Weight | 1.375 kg |
| UV-resistant | no |
|---|---|
| Halogen free | yes |
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| Type of fastening | Wall/ceiling mounting |
|---|---|
| Impact strength | IK07 |
| Sealable | no |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902153527 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85369095 |
| Minimum order quantity | 1 |
| Base unit material | Polystyrene |
|---|---|
| Cover material | Polystyrene |
| Cover screw material | Stainless steel 1.4567 (V2A) |
| EAN / GTIN | 4013902311736 |
|---|---|
| Width | 0.511 m |
| Weight | 5.87 kg |
| Height | 0.242 m |
| Quantity | 4 pieces |
| Depth | 0.261 m |
| EAN / GTIN | 4013902311743 |
|---|---|
| Width | 0.8 m |
| Weight | 264.54 kg |
| Height | 1.84 m |
| Quantity | 168 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902153527 |
|---|---|
| Width | 0.25 m |
| Weight | 1.375 kg |
| Height | 0.115 m |
| Quantity | 1 pieces |
| Depth | 0.25 m |
Tender text
(48042501.TXT 879 B)
Log in to download tender texts.
Combi set
KS M20
Productnumber 19202001
Thread length 17 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi set
KS M32
Productnumber 19203201
Thread length 20 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi connector
KST M25-17
Productnumber 19302501
Length 17 mm, for vertical connection of AK/AKi 03 - 12 distribution...
Combination socket for connecting enclosures, polyethylene, grey, for wall thickness 1.5 - 4.0 mm
Combi connector
KST M25-33
Productnumber 19302601
Length 33 mm, for vertical connection of AK 14 - 56, AK/AKi 24...
Combination socket for connecting enclosures, polyethylene, grey, for wall thickness 1.5 - 4.0 mm
Combi connector
KST M32
Productnumber 19303201
Length 25 mm, for vertical and horizontal connection of AK/AKi 24...
Combination socket for connecting enclosures, polyethylene, grey, for wall thickness 1.5 - 4.0 mm
Twist plug
WST M20
Productnumber 20342001
Sealing range 8 - 13,5 mm, Thread length 12 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Twist plug
WST M25
Productnumber 20342501
Sealing range 9 - 16 mm, Thread length 12 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Twist plug
WST M32
Productnumber 20343201
Sealing range 17 - 24 mm, Thread length 14 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Twist plug
WST M40
Productnumber 20344001
Sealing range 17 - 24 mm, Thread length 14 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Twist plug
WST M50
Productnumber 20345001
Sealing range 22 - 35 mm, Thread length 18 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Twist nipple
WNI M20
Productnumber 21342001
Sealing range 8 - 13,5 mm, Thread length 12 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, grey
Twist nipple
WNI M25
Productnumber 21342501
Sealing range 9 - 16 mm, Thread length 12 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, grey
Twist nipple
WNI M32
Productnumber 21343201
Sealing range 11 - 22 mm, Thread length 14 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, grey
Cable gland
KVR M20-MGM
Productnumber 22742001
Sealing range 6 - 12 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M20-GDB/MGM
Productnumber 22742101
Sealing range 7 - 14 mm, Thread length 9 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M25-MGM
Productnumber 22742501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M32-MGM
Productnumber 22743201
Sealing range 11 - 21 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M40-MGM
Productnumber 22744001
Sealing range 16 - 28 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M50-MGM
Productnumber 22745001
Sealing range 21 - 34,5 mm, Thread length 13 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Attachment bushes
AST M20
Productnumber 23042001
Sealing range 8 - 13,5 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Attachment bushes
AST M25
Productnumber 23042501
Sealing range 9 - 18,5 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Attachment bushes
AST M32
Productnumber 23043201
Sealing range 13 - 23 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Attachment bushes
AST M40
Productnumber 23044001
Sealing range 17 - 30 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Sealing plugs
VST M20
Productnumber 23142001
Sealing range 8 - 13,5 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Sealing plugs
VST M25
Productnumber 23142501
Sealing range 9 - 16 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Sealing plugs
VST M32
Productnumber 23143201
Sealing range 13 - 23 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Sealing plugs
VST M40
Productnumber 23144001
Sealing range 17 - 30 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Double-membrane seals
DMS M25/sw
Productnumber 26002501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M20/w
Productnumber 26012001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25/w
Productnumber 26012501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M20
Productnumber 26042001
Sealing range 7 - 13 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25
Productnumber 26042501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M32
Productnumber 26043201
Sealing range 13 - 21 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M32/4
Productnumber 26043301
Sealing range 3.5 - 6 mm per entry
Double membrane seals, IP66, with two sealing membranes, closed, max. four cable insertions for...
Double-membrane seals
DMS M40
Productnumber 26044001
Sealing range 17 - 28 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Ventilation seal
BST M20/sw
Productnumber 26202001
Black
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
Ventilation seal
BST M20
Productnumber 26242001
Grey
Ventilation Plug, IP44, with labyrinth seal to avoid condensation formation in enclosures, flow rate...
