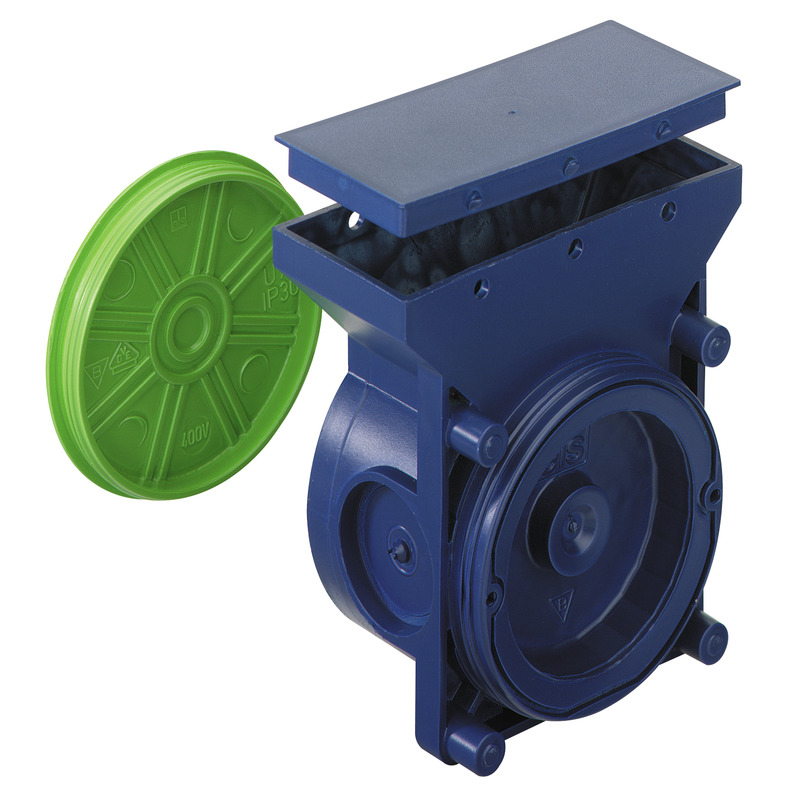

Junction boxes, as a wall/ceiling transfer in large panel construction, protection class IP30, rated insulation voltage: 400V AC, Halogen free

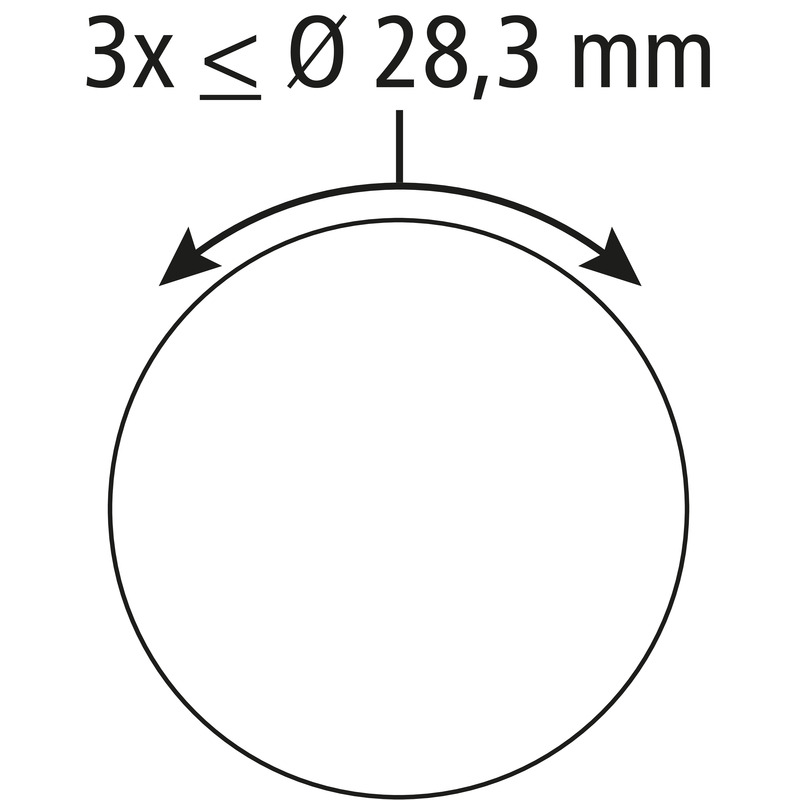

membrane for perforation, sealing range M16 - M25
| Rated insulation voltage AC | 400 V |
|---|---|
| Type of protection | IP30 |
| Suitable for | Concrete construction |
| UL Type Rating | not specified |
| Width | 95 mm |
|---|---|
| Length | 90 mm |
| Height | 50 mm |
| Weight | 0.0586 kg |
| Halogen free | yes |
|---|---|
| Flammability class according with UL94 | HB |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| max. relative humidity 25°C | - % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| EAN | 4013902200283 |
|---|---|
| ETIM Class | EC002601 |
| Custom tariff number | 39269097 |
| Minimum order quantity | 1 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| EAN / GTIN | 4013902346967 |
|---|---|
| Width | 0.493 m |
| Weight | 3.906 kg |
| Height | 0.356 m |
| Quantity | 60 pieces |
| Depth | 0.293 m |
| EAN / GTIN | 4013902346974 |
|---|---|
| Width | 0.8 m |
| Weight | 158.616 kg |
| Height | 1.92 m |
| Quantity | 2160 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902200283 |
|---|---|
| Width | 0.095 m |
| Weight | 0.0586 kg |
| Height | 0.05 m |
| Quantity | 1 pieces |
| Depth | 0.09 m |
Tender text
(97069001.TXT 485 B)
Log in to download tender texts.
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
BIM-Data
(Download 3D-BIM-Data)
Log in to download tender texts.
sealing plate
VD 75
Productnumber 97910001
with fixing screws
Sealing plate for junction boxes, flame resistant, white
Stepped drill
LFR
Productnumber 19599501
through opening: M16-32, drill hole: 16.5-32.5 mm
Hole cutter
Conduit coupling
RVB 20
Productnumber 97022001
for long-ridged pipes M20
Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...
Conduit coupling
RVB 25
Productnumber 97022501
for long-ridged pipes M25
Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...
Conduit coupling
RVB 32
Productnumber 97023201
for long-ridged pipes M32
Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...
Conduit coupling
RVB 40
Productnumber 97024001
for long-ridged pipes M40
Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...
Hole punch
IBT LZA-OE
Productnumber 97810001
without punch set
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
Hole punch
IBT LZA-18
Productnumber 97811801
with 18 mm punch set for pipe M20
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
Hole punch
IBT LZA-23
Productnumber 97812301
with 23 mm punch set for pipe M25
Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...
Punch set
IBT STE-LST/14
Productnumber 97881401
Punch sets for LST hole punch
Punch set
IBT STE-LST/18
Productnumber 97881801
Punch sets for LST hole punch
Punch set
IBT STE-LST/23
Productnumber 97882301
Punch sets for LST hole punch
Punch set
IBT STE-LST/30
Productnumber 97883001
Punch sets for LST hole punch
Punch set
IBT STE-LST/39
Productnumber 97883901
Punch sets for LST hole punch
Punch set
IBT STE-LZA/14
Productnumber 97891401
Punch sets as replacements or where expansion is required for IBT LZA hand hole punch
Punch set
IBT STE-LZA/18
Productnumber 97891801
Punch sets as replacements or where expansion is required for IBT LZA hand hole punch
Punch set
IBT STE-LZA/23
Productnumber 97892301
Punch sets as replacements or where expansion is required for IBT LZA hand hole punch
Expansion mandrel
WED
Productnumber 97915501
expansion range 9 - 25 mm Ø
Expansion mandrel, assembly tool when inserting conduit
IBT Accessories
NAS-AL
Productnumber 97924001
spreader nail, aluminium 40 mm, with plastic plug for fixing the boxes...
Fixings for steel formwork
IBT Accessories
NA-AL
Productnumber 97924201
aluminium nail, 40 mm, long-ridged
Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...
IBT Accessories
NA-AL/gl
Productnumber 97924301
aluminium nail, 40 mm, smooth
Fixings for wood / plastic formwork, for site cast concrete or poured concrete construction on...
