#98000601 | Dimensions: 311 x 202 x 158 mm

Universal mounting enclosure

K4-H-P EK

Universal mounting enclosure, suitable to take a 40-pole telephone terminal strip, as a telephone continuity box acc. to DIN 47614-615 or as a small distribution board in combination with the UP...

Login to see price

Remember product

Description

Universal mounting enclosure, suitable to take a 40-pole telephone terminal strip, as a telephone continuity box acc. to DIN 47614-615 or as a small distribution board in combination with the UP 015 (1-row, 15 distribution units), protection class IP30, rated insulation voltage: 400V AC, Halogen free

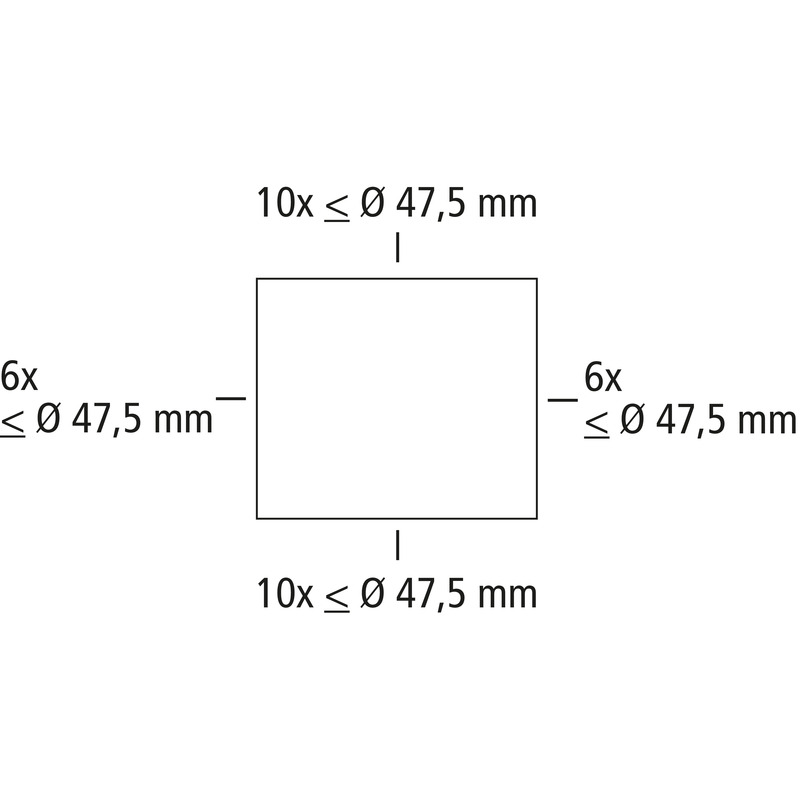

Fermacell® plasterboard with recess (max. load-bearing capacity 10 kg), variable to max. 220 x 150 mm, max. installation height LV lights: 130 mm, HV lights: 135 mm, electronic transformer up to max. 150 VA, lamp output max. 50W/LED 40W, magnet and nail installation, membrane for perforation, sealing range M16 - M50, support spar compatible

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	311 mm
Length	202 mm
Height	158 mm
Weight	1.4 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	magnet and nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902933716
ETIM Class	EC002601
Custom tariff number	39269097
Minimum order quantity	2

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Logistic data

Outer packaging

EAN / GTIN	4013902350117
Width	0.437 m
Weight	3.185 kg
Height	0.212 m
Quantity	2 pieces
Depth	0.317 m

Pallet

EAN / GTIN	4013902350124
Width	0.8 m
Weight	174.88 kg
Height	1.85 m
Quantity	96 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902933716
Width	0.311 m
Weight	1.4 kg
Height	0.158 m
Quantity	1 pieces
Depth	0.202 m
