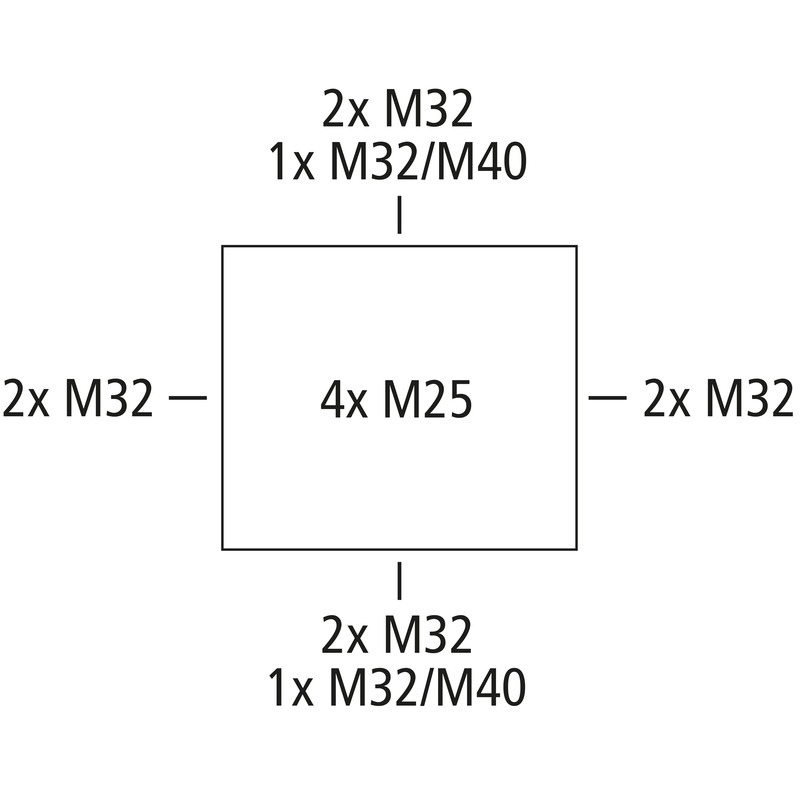

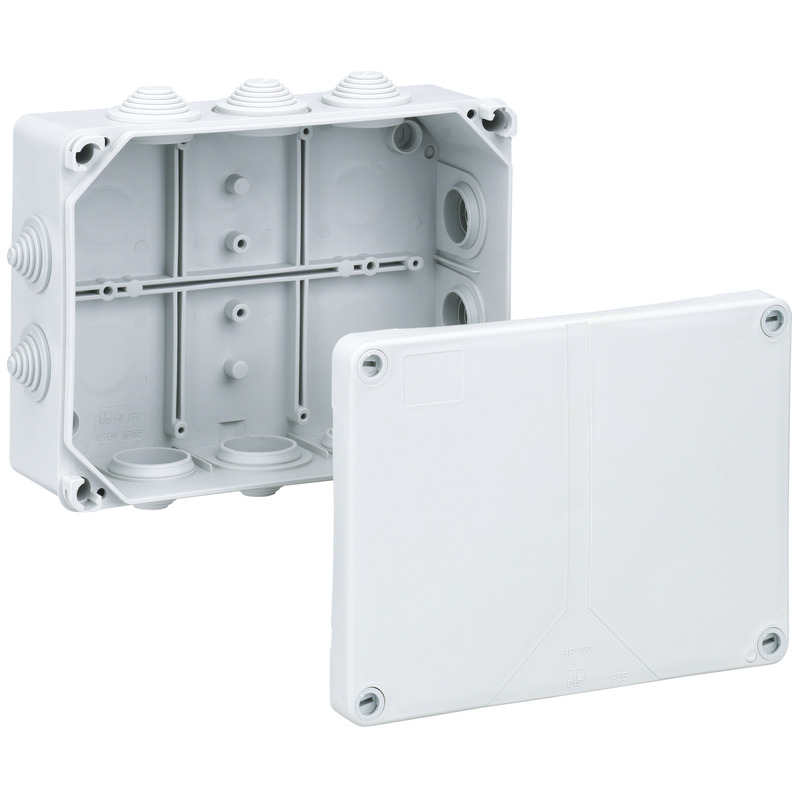

Junction box, protection class IP55, nominal cross-section 16 mm², Ui=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), stepped nipple, M25/M32/M40, sealing range 13 - 26,5 mm, (4 rear, 10 side), internal fixing points, for standard indoor installations
grey, without terminals
| Rated insulation voltage AC | 690 V |
|---|---|
| Max. conductor cross section | 16 mm² |
| Protection class | II |
| Type of protection | IP55 |
| UL Type Rating | not specified |
| Base unit colour | grey |
|---|---|
| Cover colour | grey |
| Width | 199 mm |
|---|---|
| Length | 149 mm |
| Height | 77 mm |
| Inner length | 140 mm |
| Inner width | 190 mm |
| Inner height | 70 mm |
| Weight | 0.31 kg |
| UV-resistant | no |
|---|---|
| Halogen free | no |
| Glow-wire flammability | 650 °C (EN 60695-2-11) |
| for sealing range min | 13 mm |
|---|---|
| for sealing range max | 26.5 mm |
| Type of fastening | Wall/ceiling mounting |
| Impact strength | IK07 |
| Sealable | no |
| Fastening | internal fixing points |
| max. relative humidity 25°C | 95 % |
|---|---|
| max. relative humidity 40°C | 50 % |
| Min. ambient temperature | -25 °C |
| Max. ambient temperature | 40 °C |
| 24h ambient temperature | 35 °C |
| Installation location | Indoors |
| EAN | 4013902940073 |
|---|---|
| ETIM Class | EC002600 |
| Custom tariff number | 85389099 |
| Minimum order quantity | 8 |
| Base unit material | Polypropylene |
|---|---|
| Cover material | Polypropylene |
| Test mark | VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)) |
|---|
| EAN / GTIN | 4013902339563 |
|---|---|
| Width | 0.437 m |
| Weight | 2.7 kg |
| Height | 0.212 m |
| Quantity | 8 pieces |
| Depth | 0.317 m |
| EAN / GTIN | 4013902339570 |
|---|---|
| Width | 0.8 m |
| Weight | 136.82 kg |
| Height | 1.85 m |
| Quantity | 384 pieces |
| Depth | 1.2 m |
| EAN / GTIN | 4013902940073 |
|---|---|
| Width | 0.199 m |
| Weight | 0.31 kg |
| Height | 0.077 m |
| Quantity | 1 pieces |
| Depth | 0.149 m |
Tender text
(32699001.TXT 761 B)
Log in to download tender texts.
CAD-Data
(Download 3D-CAD-Data)
Log in to download tender texts.
Combi set

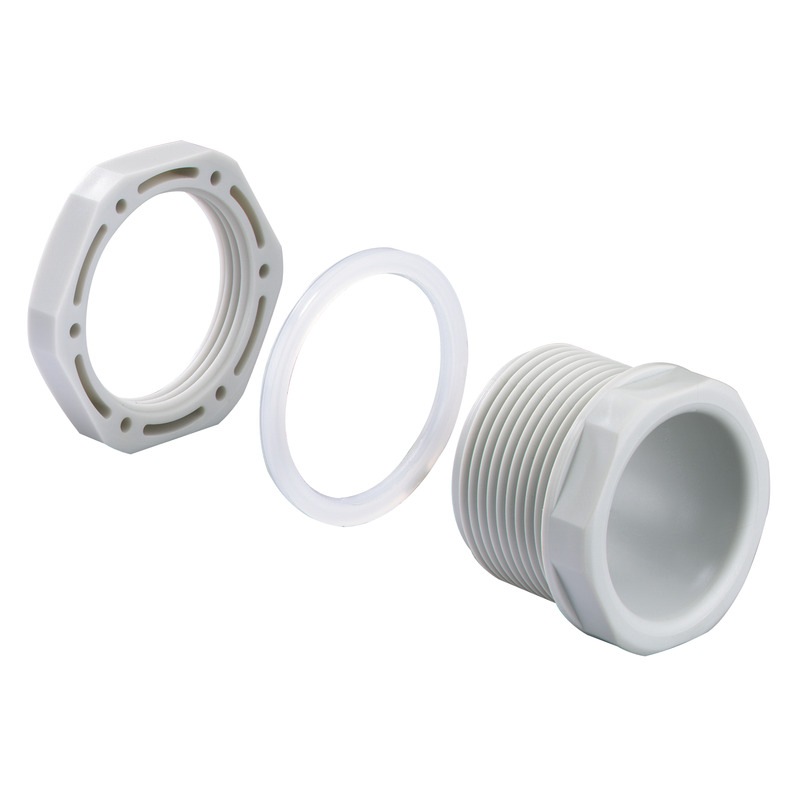

KS M25
Productnumber 19202501
Thread length 19 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Combi set
KS M25-gro
Productnumber 19202601
Thread length 22 mm
Combination set for connecting enclosures with metric entries, polystyrene, grey, complete with...
Mounting plate
TK MPI-1811
Productnumber 19500601
TK PS / TK PC 1811
Assembly plate in melamine-clad insulating material, 2.5 mm thick, incl. fixing screws, grey
Standard rail
NS 35-106
Productnumber 19810601
for TK 1309, TK 1313 and Abox/Abox-i 100, length 106 mm
Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws
Standard rail
NS 35-144
Productnumber 19814401
TK PS/PC 1809/1811/1813/1818/2518
Standard rail acc. to DIN EN 60715, 35 x 7.5 mm, incl. fixing screws
Twist plug

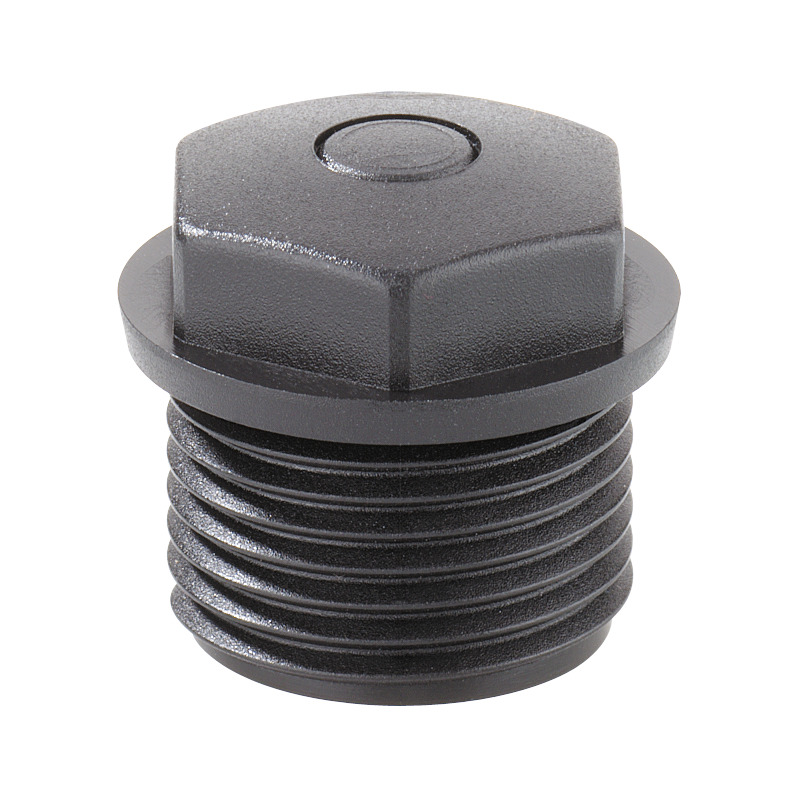

WST M25/sw
Productnumber 20302501
Sealing range 9 - 16 mm, Thread length 12 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, black
Twist plug
WST M25
Productnumber 20342501
Sealing range 9 - 16 mm, Thread length 12 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Twist plug
WST M40
Productnumber 20344001
Sealing range 17 - 24 mm, Thread length 14 mm
Twist plug, IP54, M_ x 1.5 mm, with closed sealing membrane, grey
Lock nut

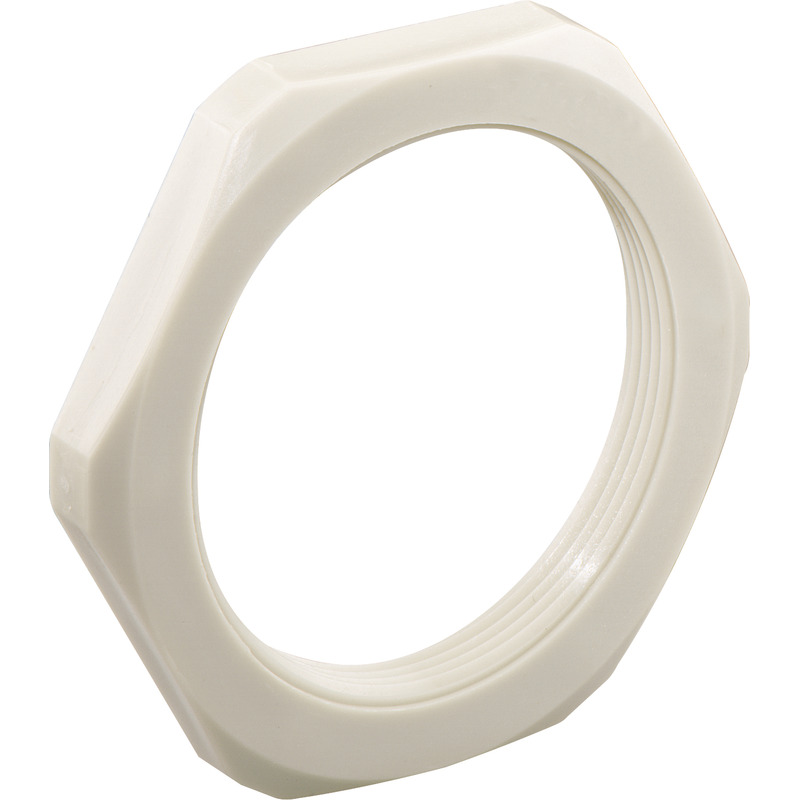

GMU PA M25
Productnumber 20842501
Thread M25x1.5
Lock nut for metric twist nipple and cable glands, polyamide
Lock nut
GMU PA M40
Productnumber 20844001
Thread M40x1.5
Lock nut for metric twist nipple and cable glands, polyamide
Twist nipple

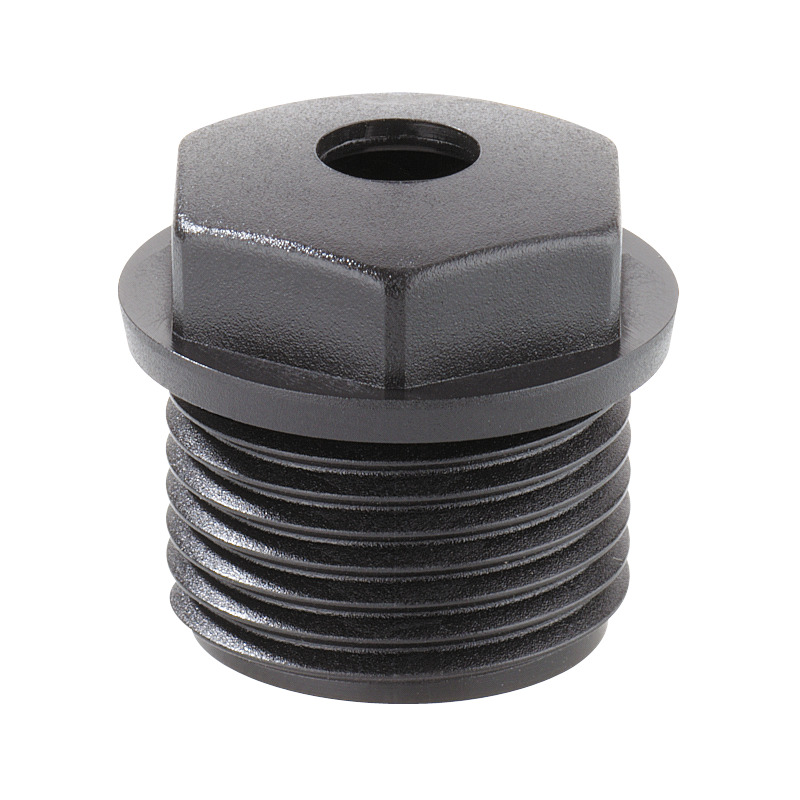

WNI M25/sw
Productnumber 21302501
Sealing range 9 - 16 mm, Thread length 12 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, black
Twist nipple
WNI M25
Productnumber 21342501
Sealing range 9 - 16 mm, Thread length 12 mm
Twist nipple, IP54, M_ x 1.5 mm with open sealing membrane, polyethylene, grey
Stepped nipple

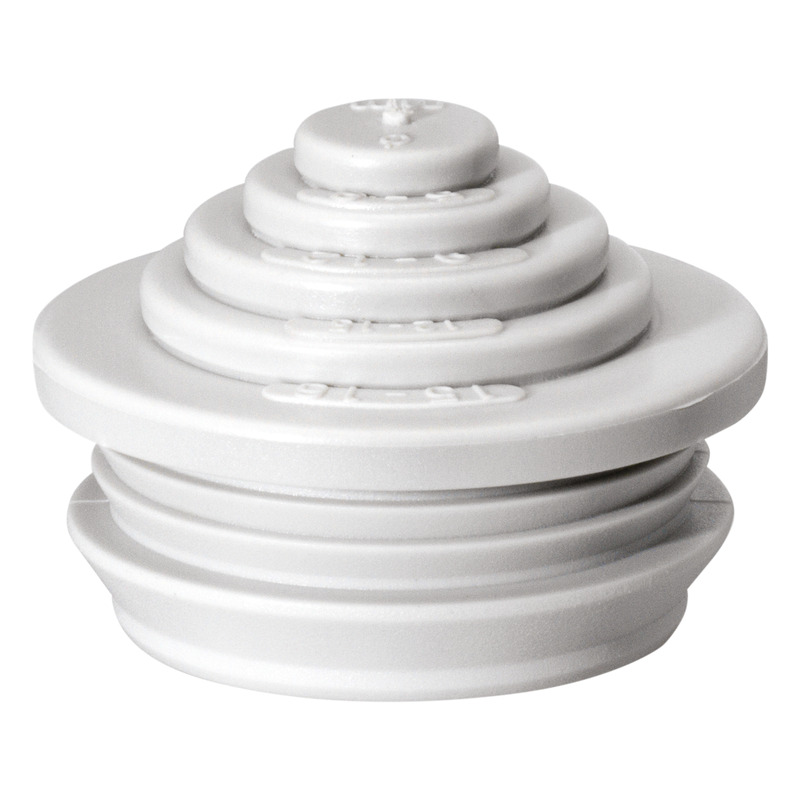

SNI M25
Productnumber 21642501
Sealing range 5 - 21 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Stepped nipple
SNI M40
Productnumber 21644001
Sealing range 13 - 34 mm
Stepped nipple, IP55, with closed sealing membrane, can be cut into multiple steps, thermoplastic...
Cable gland
KVR M25-MGM/sw
Productnumber 22702501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...
Cable gland
KVR M40-MGM/sw
Productnumber 22704001
Sealing range 16 - 28 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, black
(*IP69...
Cable gland
KVR M25-MGM
Productnumber 22742501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Cable gland
KVR M40-MGM
Productnumber 22744001
Sealing range 16 - 28 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, with locknut, grey
(*IP69 in...
Attachment bushes
AST M25
Productnumber 23042501
Sealing range 9 - 18,5 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Attachment bushes
AST M40
Productnumber 23044001
Sealing range 17 - 30 mm
Mounting socket IP55, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Attachment bushes
AST M25/or
Productnumber 23062501
Sealing range 9 - 18 mm
Attachment bushes, IP 54, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Attachment bushes

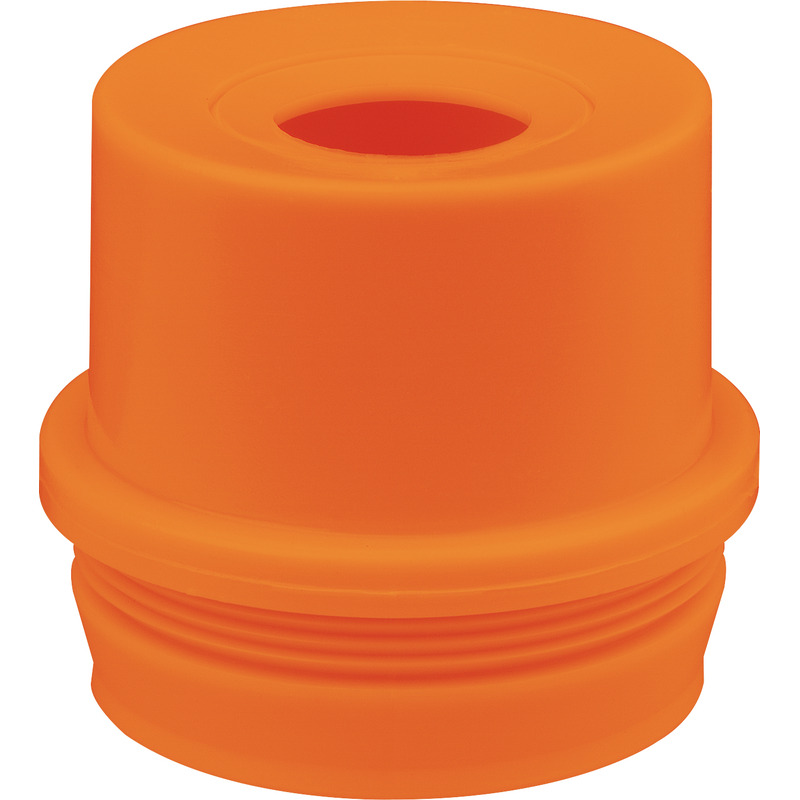

AST M40/or
Productnumber 23064001
Sealing range 17 - 30 mm
Attachment bushes, IP 54, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Sealing plugs
VST M25
Productnumber 23142501
Sealing range 9 - 16 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Sealing plugs
VST M40
Productnumber 23144001
Sealing range 17 - 30 mm
Sealing plugs, IP55, with closed sealing membrane, thermoplastic elastomer (TPE), for wall thickness...
Sealing plugs
VST M25/or
Productnumber 23162501
Blanking plugs with closed diaphragm are needed when DAL 1 / DAL 2 are combined one behind the...
Sealing plugs
VST M40/or
Productnumber 23164001
Blanking plugs with closed diaphragm are needed when DAL 1 / DAL 2 are combined one behind the...
Attachment bushes

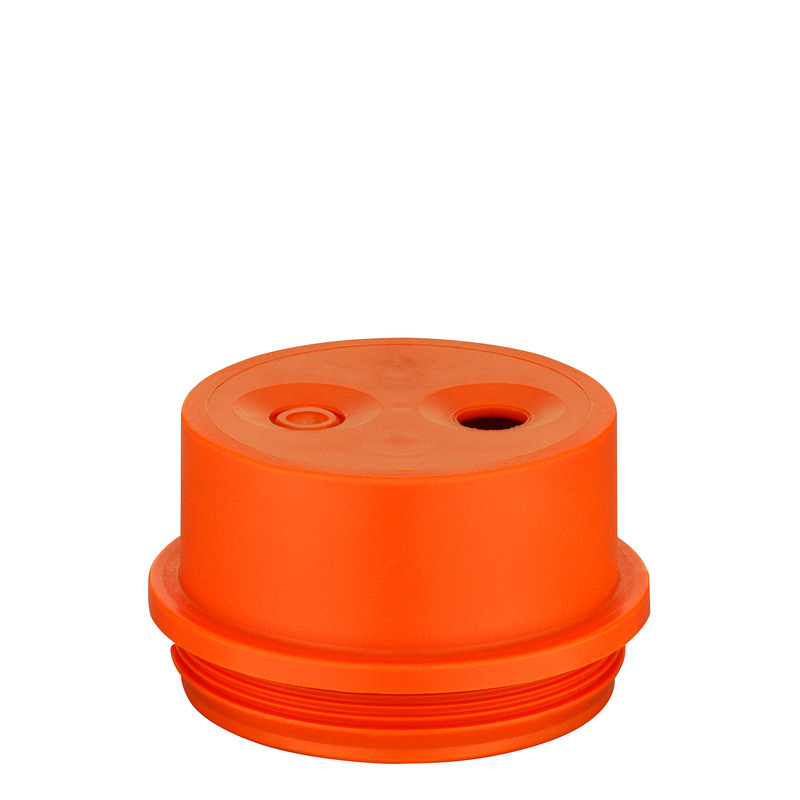

DST M40 or
Productnumber 23564001
With two sealing membranes, One of these open, orange, for wall...
Attachment bushes, IP 54, with open sealing membrane, thermoplastic elastomer (TPE), for wall...
Cable gland
KVR M25
Productnumber 24742501
Sealing range 9 - 16 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, without locknut, grey
(*IP69 in...
Cable gland
KVR M40
Productnumber 24744001
Sealing range 16 - 28 mm, Thread length 11 mm
Cable gland, IP68/IP69*, with strain relief, polyamide, M_ x 1.5 mm, without locknut, grey
(*IP69 in...
Sealing ring

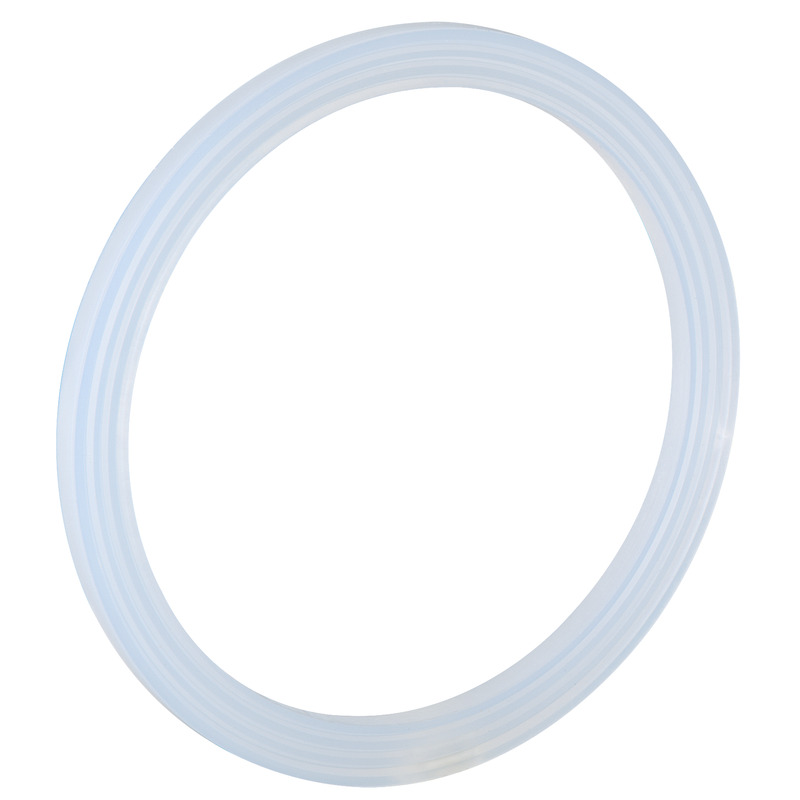

ADR M25
Productnumber 24902501
natural, internal diameter 25 mm, external diameter 30 mm, thickness 2...
Sealing washers for twist nipple and cable gland with metric thread, polyethylene
Sealing ring
ADR M40
Productnumber 24904001
natural, internal diameter 40 mm, external diameter 45 mm, thickness 2...
Sealing washers for twist nipple and cable gland with metric thread, polyethylene
Double-membrane seals
DMS M25/sw
Productnumber 26002501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25/w
Productnumber 26012501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Double-membrane seals
DMS M25
Productnumber 26042501
Sealing range 9 - 17 mm
Double membrane seals, IP66, with two sealing membranes, closed, thermoplastic elastomer (TPE), for...
Conduit connector
RST M25
Productnumber 28842501
for conduits with an external diameter of 25 mm
Pipe socket to take smooth pipes, with locknut, polystyrene, grey
Terminal block
WK 100 KLS-10²
Productnumber 46051001
5x10 mm², for K15, K3-, K4-EK boxes
Connecting terminal, Ui=400V / 690V
Standard rail
NS 35-90
Productnumber 97980001
standard rail (35 mm) for subsequent installation in IBTronic-TT...
Standard rail acc. to DIN EN 60715, 35 x 7.5mm
Cable tray fastening
KTB 1-100
Productnumber 89602901
Fixing element for mounting of enclosures on cable tray systems with elongated hole width of 7 mm...
