#97056001 | Dimensions: 71 x 71 x 48 mm

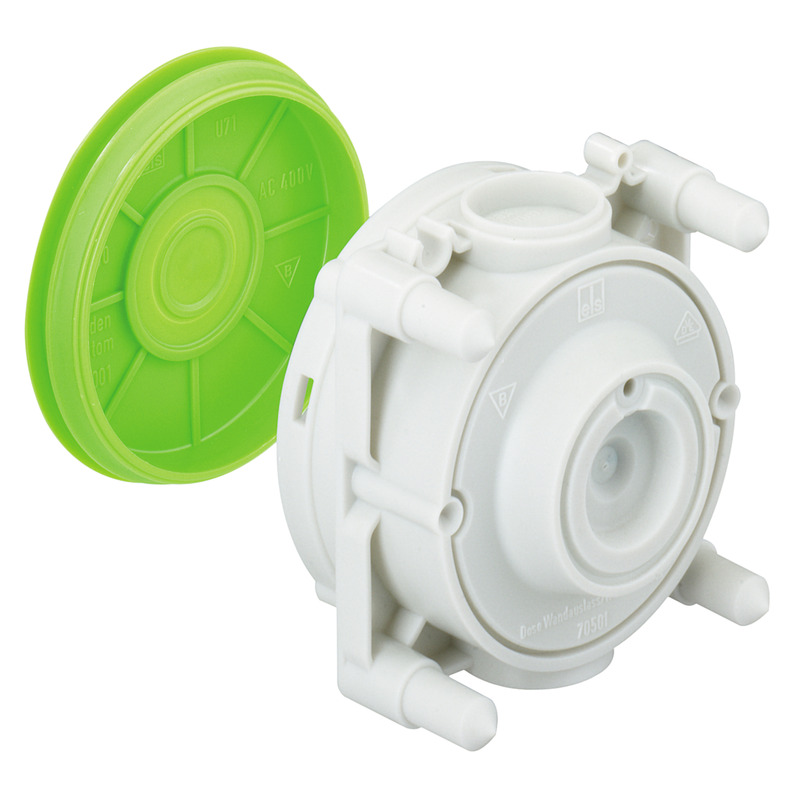

Wall outlet socket

WAD

Wall outlet socket, for connecting wall luminaires according to VDE 0100, with screwed hole for light fixing, combinable, front outlet of 35 mm, protection class IP30, rated insulation voltage:...

Login to see price

Remember product

Description

Wall outlet socket, for connecting wall luminaires according to VDE 0100, with screwed hole for light fixing, combinable, front outlet of 35 mm, protection class IP30, rated insulation voltage: 400V AC, Halogen free

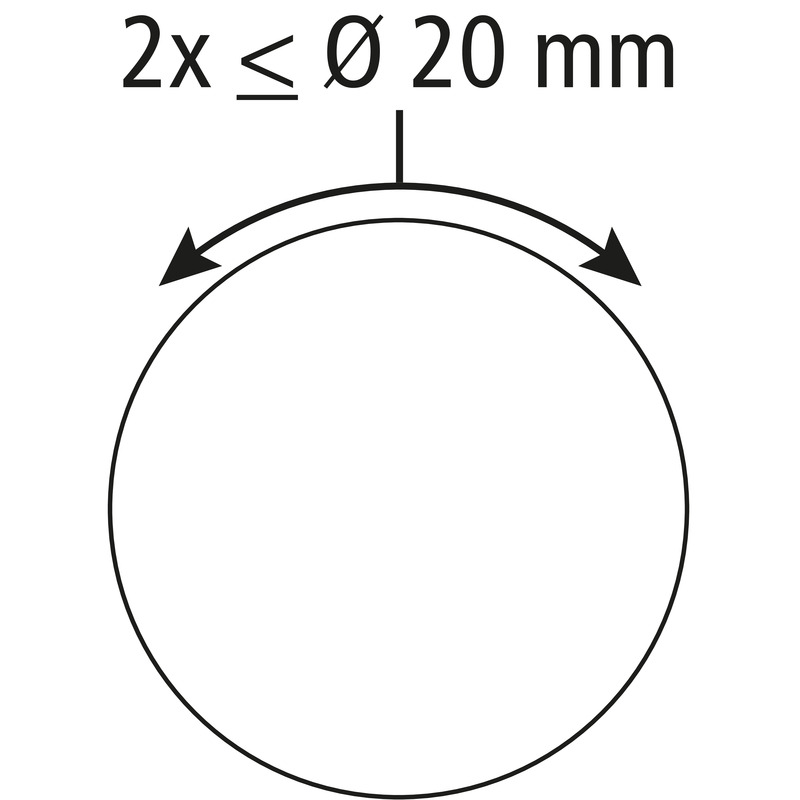

2-part, suitable for all types of formwork and opposing formwork, adhesive fixing or nail installation, membrane for perforation, sealing range M16 - M20, support spar compatible

Technical Data

electrical characteristics

Rated insulation voltage AC	400 V
Type of protection	IP30
Suitable for	Concrete construction
UL Type Rating	not specified

Colours

Cover colour	other

Dimensions

Width	71 mm
Length	71 mm
Height	48 mm
Weight	0.04 kg

Material characteristics

Halogen free	yes
Flammability class according with UL94	HB
Glow-wire flammability	650 °C (EN 60695-2-11)

mechanical properties

Type of fastening	adhesive fixing or nail installation

Ambient conditions

max. relative humidity 25°C	- %
max. relative humidity 40°C	50 %
Min. ambient temperature	-25 °C
Max. ambient temperature	40 °C
24h ambient temperature	35 °C

Sales Information

EAN	4013902180196
ETIM Class	EC002601
Custom tariff number	39269097
Minimum order quantity	1

Material

Base unit material	Polypropylene
Cover material	Polypropylene

Logistic data

Outer packaging

EAN / GTIN	4013902346844
Width	0.457 m
Weight	4.42 kg
Height	0.432 m
Quantity	100 pieces
Depth	0.23 m

Pallet

EAN / GTIN	4013902346851
Width	0.8 m
Weight	141.76 kg
Height	1.86 m
Quantity	2800 pieces
Depth	1.2 m

Piece

EAN / GTIN	4013902180196
Width	0.071 m
Weight	0.04 kg
Height	0.048 m
Quantity	1 pieces
Depth	0.071 m

Downloads

Planningdata

Tender text

CAD-Data

BIM-Data

Accessories

sealing plateWAD VD

sealing plate

WAD VD

Productnumber 97056201

2-part, sealing cover white, 35 mm Ø, outlet cover

Sealing plate for junction boxes, flame resistant, white

Stepped drill LFR

Stepped drill

LFR

Productnumber 19599501

through opening: M16-32, drill hole: 16.5-32.5 mm

Hole cutter

Conduit couplingRVB 20

Conduit coupling

RVB 20

Productnumber 97022001

for long-ridged pipes M20

Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...

Conduit couplingRVB 25

Conduit coupling

RVB 25

Productnumber 97022501

for long-ridged pipes M25

Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...

Conduit couplingRVB 32

Conduit coupling

RVB 32

Productnumber 97023201

for long-ridged pipes M32

Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...

Conduit couplingRVB 40

Conduit coupling

RVB 40

Productnumber 97024001

for long-ridged pipes M40

Conduit coupling (without conduit) with strain relief, grey, for flexible metric electrical...

DomeU 71 KP-M5

Dome

U 71 KP-M5

Productnumber 97174801

(suitable for series U 71)

Dome with threaded bush M5, suitable as an attachment for U 71 boxes as well as magnet and adhesive...

Hole punchIBT LZA-OE

Hole punch

IBT LZA-OE

Productnumber 97810001

without punch set

Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...

Hole punchIBT LZA-18

Hole punch

IBT LZA-18

Productnumber 97811801

with 18 mm punch set for pipe M20

Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...

Hole punchIBT LZA-23

Hole punch

IBT LZA-23

Productnumber 97812301

with 23 mm punch set for pipe M25

Hand hole punch, punching tool for making precision fit entries in concrete boxes, perforation...

Punch setIBT STE-LST/14

Punch set

IBT STE-LST/14

Productnumber 97881401

Punch sets for LST hole punch

Punch setIBT STE-LST/18

Punch set

IBT STE-LST/18

Productnumber 97881801

Punch sets for LST hole punch

Punch setIBT STE-LST/23

Punch set

IBT STE-LST/23

Productnumber 97882301

Punch sets for LST hole punch

Punch setIBT STE-LST/30

Punch set

IBT STE-LST/30

Productnumber 97883001

Punch sets for LST hole punch

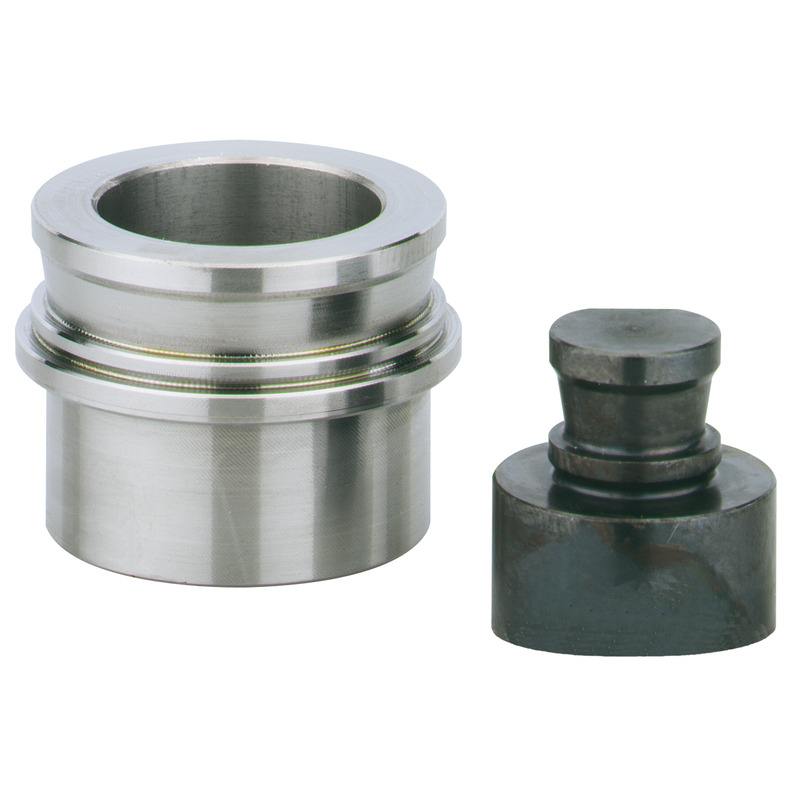

Punch setIBT STE-LST/39
